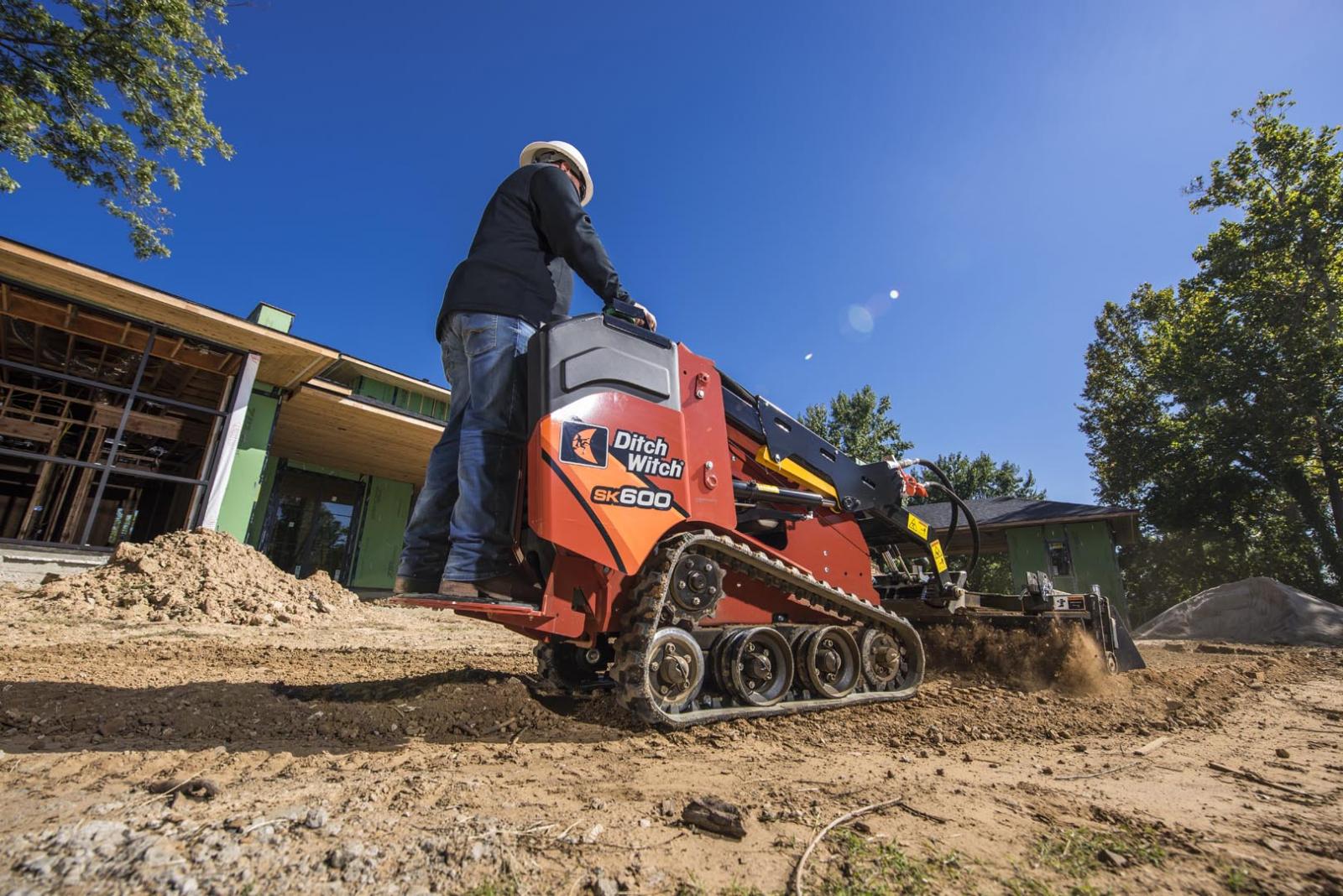

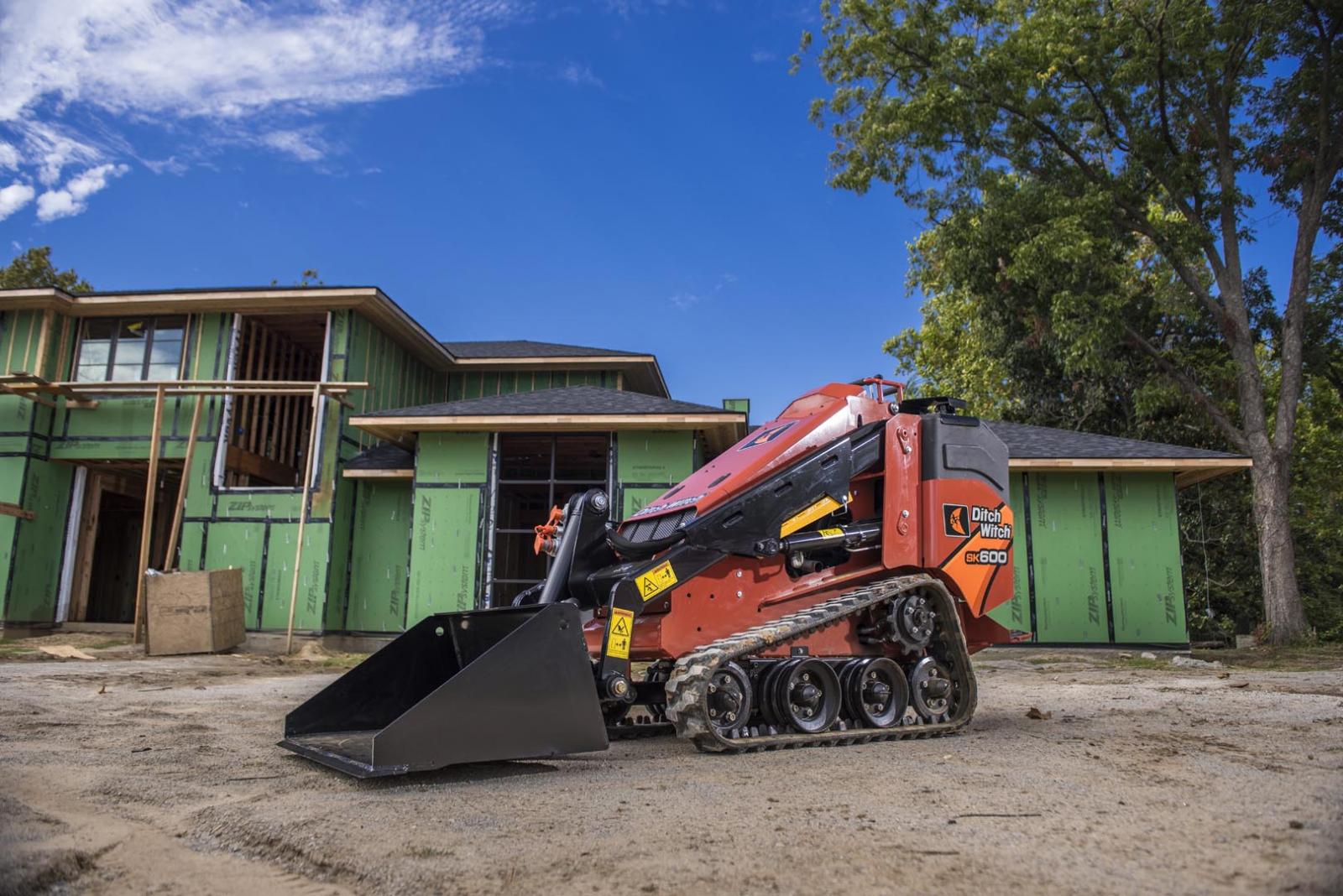

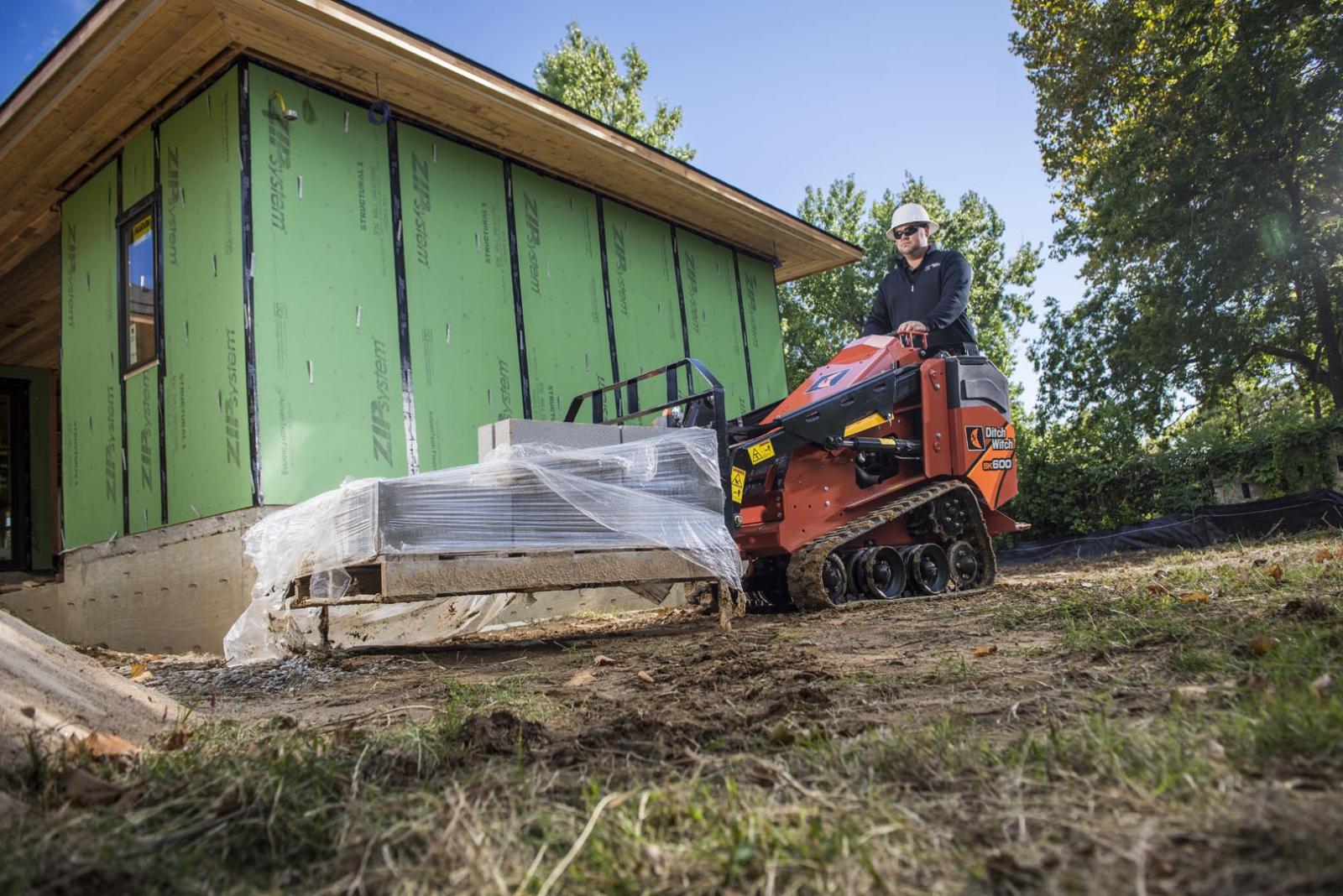

Designed for small-scale landscape and irrigation jobs, the Ditch Witch SK600 mini skid steer has a narrow frame for better maneuverability in tight, compact spaces. The small, yet mighty machine delivers industry-leading power to the attachment for enhanced jobsite productivity and versatility. A redesigned, ergonomic operator's station with optimized hydraulics offers the smoothest ride in the industry so operators stay comfortable and productive for long hours on the job. Built for heavy-duty operation, the construction-grade design improves machine durability and longevity and overall machine ROI.
- + Expand All
- - Close All
-
POWER
POWER U.S METRIC Engine Kubota® D902-E4B Fuel Diesel Gross power rating (SAE J1995) 24.8 hp 18.5 kW Emissions compliance EPA Tier 4 Final EU Stage IIIA Number of cylinders 3 Displacement 54.8 in³ 0.898 L Bore 2.83 in 72 mm Stroke 2.90 in 73.6 mm Rated speed 3,600 rpm -
Rugged Design
SK600Rugged Design
The construction-grade design is built for heavy-duty operation, improving machine durability and longevity, and overall machine ROI.
The machine is equipped with an advanced attachment latching system for simple, secure connections.
-
NOISE LEVEL
NOISE LEVEL U.S METRIC Operator ear sound pressure 90 dBA Exterior sound power 104 dBA -
Superior Support
SK600Superior Support
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
-
Outstanding Productivity
SK600Outstanding Productivity
The machine’s narrow frame easily fits through standard yard gates and is engineered to maneuver in tight, compact spaces for improved productivity in hard-to-reach places.

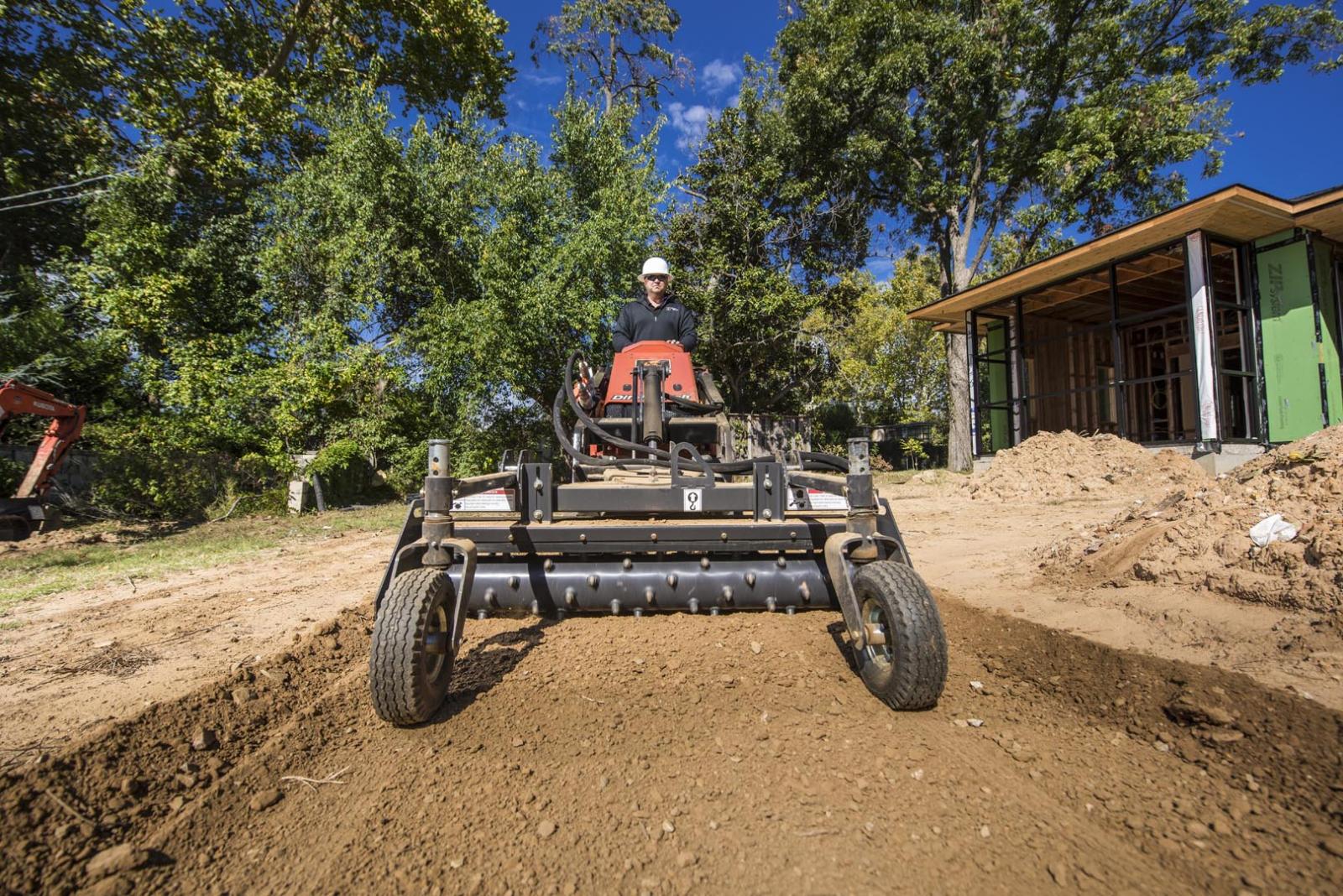

The SK600 accepts many attachments for added versatility and improved ROI for landscape customers.
A standard hydraulic parking brake allows for easy engagement and disengagement.
Class-leading power to the attachment and outstanding versatility, free additional manpower and allows workers to focus time on other jobsite tasks.
-
OPERATION
OPERATION U.S METRIC Ground drive speed Forward/reverse 4.1 mph 6.6 km/h Ground pressure* (ISO/CD 16754) 7-in (180-mm) tracks 4.8 psi 0.33 bar * Includes machine weight, 175 lb (80 kg) bucket and 165-lb (75-kg) operator -
Best-in-Class Operator's Station
SK600Best-in-Class Operator's Station
Industry-leading operator-platform design improves platform stability and durability, and ground clearance over the competition.
Customer-driven control placement optimizes operator comfort and reduces fatigue.
Ergonomic operator's station comes standard with dual-level ground drive controls, with an optional joystick, allowing the operator to control each track independently for improved maintenance and mobility on difficult jobsite conditions.
An easy-to-use auxiliary-control foot pedal allows operators to maintain hydraulic flow to the attachment while freeing their hands to control depth and ground speed.
Optimized hydraulics deliver the smoothest ride in the industry, allowing operators to stay comfortable and productive for long hours on the job.
-
HYDRAULIC SYSTEM
HYDRAULIC SYSTEM U.S METRIC Auxiliary circuit Double gear pump Flow rate 12.0 gpm 45.4 l/min Pressure 3,000 psi 207 bar -
Exceptional Power
SK600Exceptional Power
Efficient, low-maintenance 24.8-hp (18.5 kW) Kubota® diesel engine provides exceptional power to all machine functions and delivers added power to the attachment for enhanced productivity on landscape and irrigation jobs.
600-lb (272,150-kg) rated operating capacity and 76-in (210.820-cm) hinge pin height enables productive loading and ability to handle tasks requiring more strength and power.

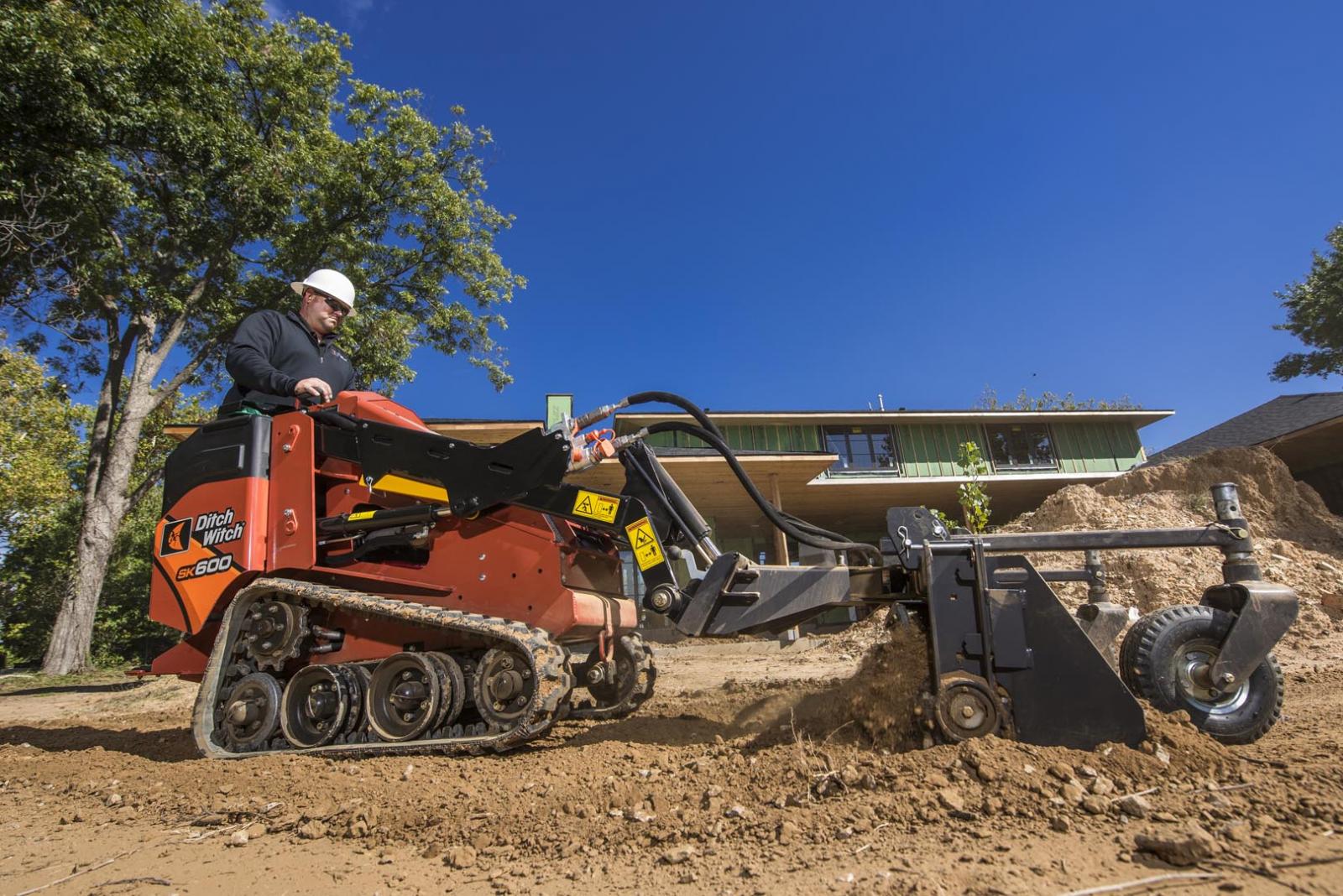

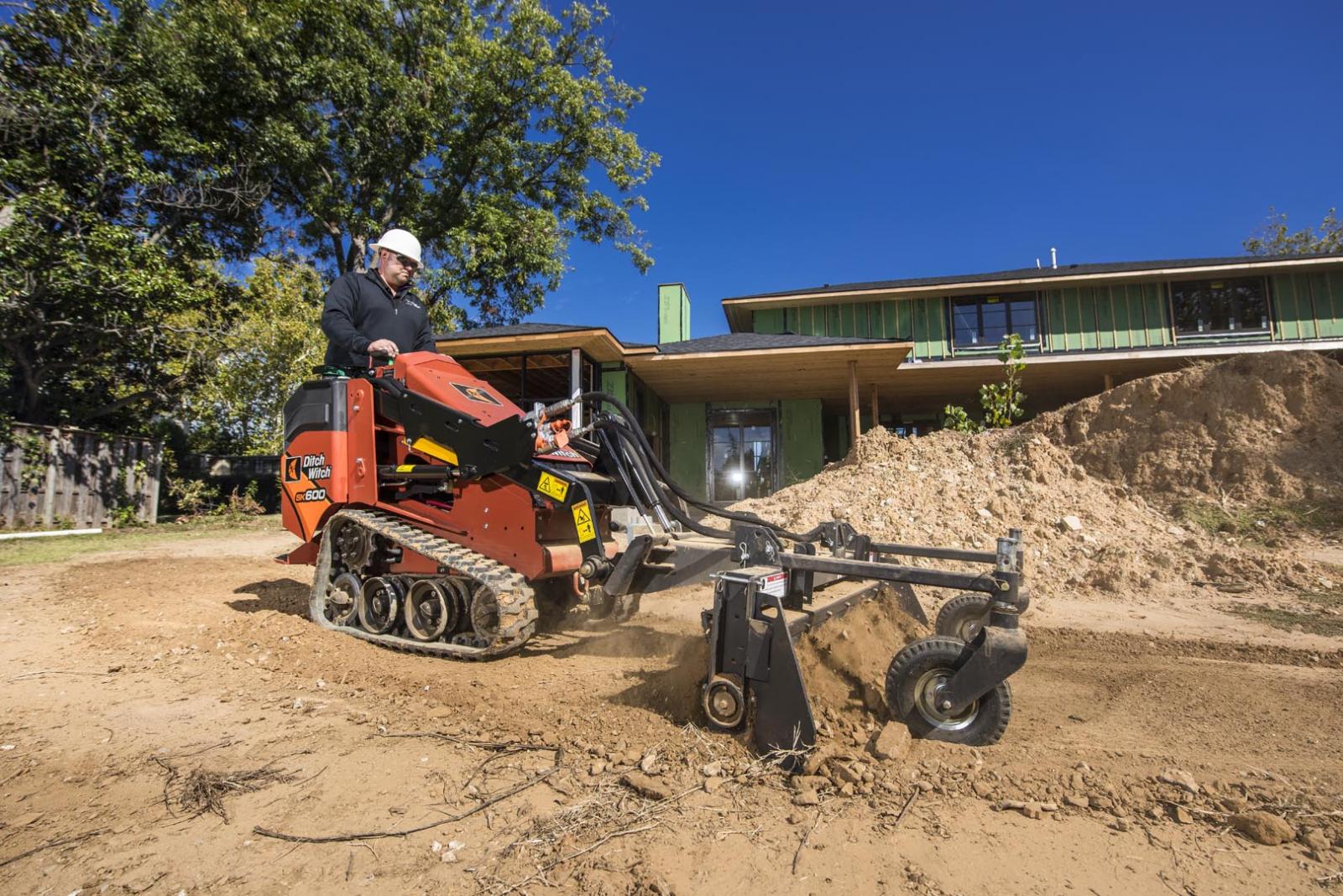

Directs the most power to the attachment in its class for more efficient and productive use of hydraulic attachments, such as augers and trenchers.
-
Low-Maintenance
SK600Low-Maintenance
All machine maintenance points are easily accessible, helping to keep it running smoothly and saving customers time and money.
Low-maintenance track-tensioning system is equipped with a grease cylinder for easy adjustment and track removal, reducing downtime and improving machine longevity.
Single-point, lockable fuel and hydraulic fluid tanks improve security and provide rental companies peace-of-mind.
Leverages the common design, and standard operation of other Ditch Witch skid steer models to ease operator training and simplify machine maintenance.
-
DIMENSIONS (STD)
DIMENSIONS (STD) U.S METRIC Operating height, max std. bucket 103 in 2630 mm Overall height of machine 54 in 1390 mm Overall length of machine, std. bucket 105 in 2680 mm Overall length of loader, no attachment 80 in 2140 mm Machine weight (no attachment, fluids full) 2,418 lb 1096 kg Hinge pin height, max 76 in 1930 mm Wheelbase/track length 36 in 925 mm Track width 33.5 in 850 mm Ground clearance, min Center 8.2 in 207 mm Side 3.8 in 96 mm Rated operating capacity 35% of tipping capacity 600 lb 272 kg Angle of departure 27° -
BATTERY
BATTERY SAE reserve capacity rating 110 min SAE cold crank @ 0°F (-18°C) 800 amps Electrical system 12V -
FLUID CAPACITIES
FLUID CAPACITIES U.S METRIC Fuel tank capacity 10.5 gal 40 L Engine oil, w/filter 5 qt 4.7 L Hydraulic reservoir capacity 9.2 gal 35 L
