The Ditch Witch SK750 and SK755 are built to outperform on any jobsite. Both models feature a high-drive track system along with an enhanced operator station, delivering superior performance through increased ground clearance, more lift capacity, faster ground speed, longer track life, and more operator comfort. And by sending more horsepower to the attachment than the competition, these SK mini skid steers will help make you more productive, job after job. Not White. Not Red. Only Orange.
- + Expand All
- - Close All
-
Power
SK755Power
Efficient, low-maintenance Kubota® diesel engines provide outstanding power for all machine functions—32.8 hp (24.5 kW).
Belt-free design eliminates worries about slipping, squeaking and breaking.
-
Hydraulic System
Hydraulic System Auxiliary circuit Double gear pump Flow rate (Pump #1) 8.5 gpm 30 l/min Flow rate (Pump #2) 5.5 gpm 21 l/min Pressure 3,000 psi 207 bar Ground drive Dual hydrostatic pumps Flow rate 13.9 gpm 52 l/min Pressure 3,500 psi 241 bar -
Battery
Battery SAE reserve capacity rating 110 min SAE cold crank @ 0ºF (-18ºC) 800 amps Electrical system 12V * Includes machine weight, 175 lb (80 kg) bucket, and 165 lb (75 kg) operator. Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown. -
Operation
Operation Ground drive speed Forward/reverse 4.7 mph 7.6 km/h Ground pressure* (ISO/CD 16754) 7-in (180-mm) tracks 4.8 psi 0.33 bar 9-in (230-mm) tracks 3.8 psi 0.26 bar -
Productivity
SK755Productivity
Industry-leading power to the attachment provides unbeatable productivity; accepts more than 70 attachments for a wide range of utility, landscaping, plumbing, and other underground construction tasks.
800-lb (362.9-kg) rated operating capacity and an 81-inch (2057.4-mm) hinge-pin height enables more productive loading.
-
Fluid Capacities
Fluid Capacities Fuel tank capacity 10.5 gal 40 L Engine oil, w/filter 4.2 qt 4 L Hydraulic reservoir capacity 9.2 gal 35 L -
Operator's Station
SK755Operator's Station

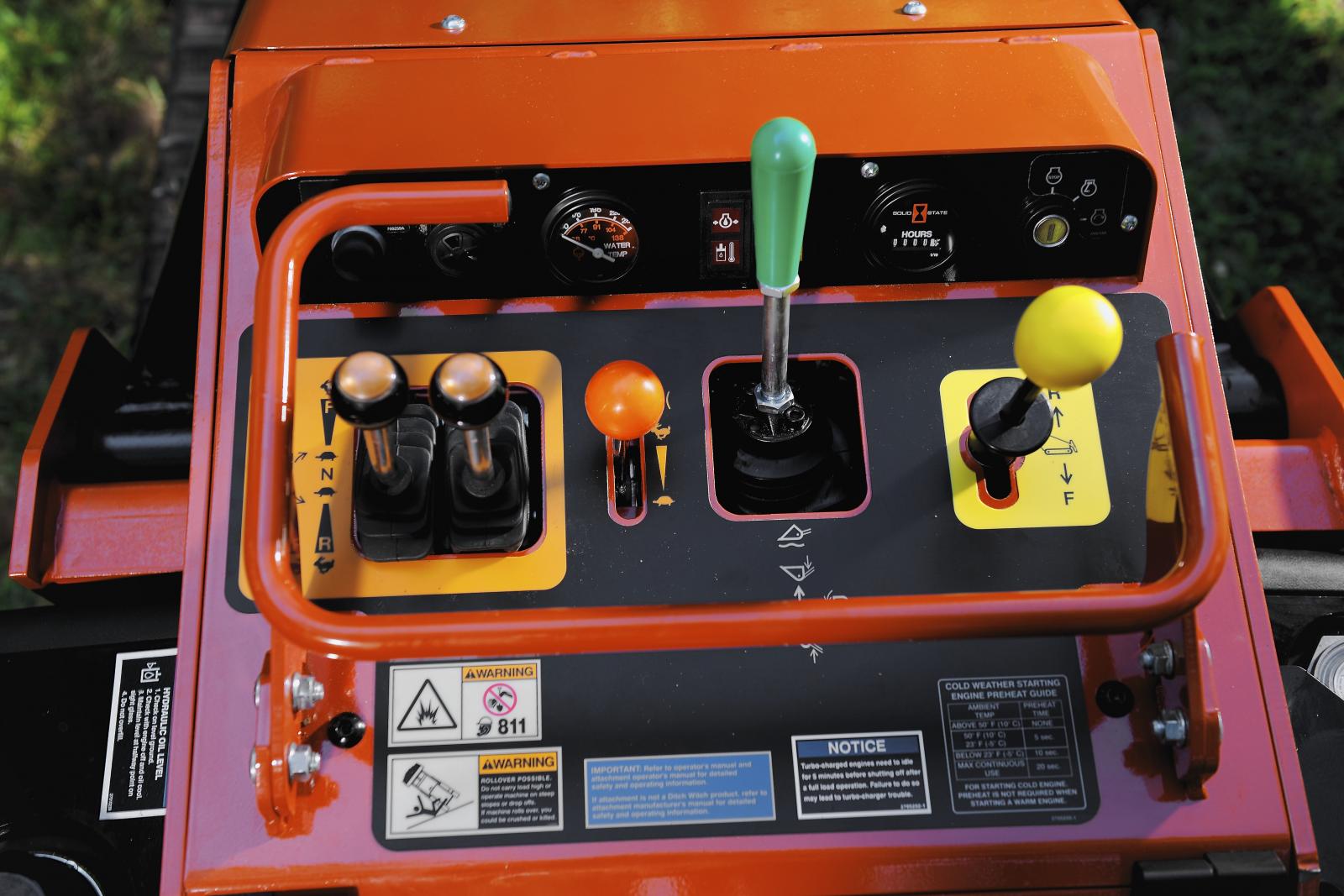

Two-way auxiliary control foot pedal enables you to maintain hydraulic flow to the attachment with the pedal, freeing up your hands to control depth and ground speed.
Ergonomic operator’s station comes standard with dual lever ground drive controls or the option of a single lever joystick.
-
Undercarriage
SK755Undercarriage
Low-maintenance track tensioning system features a grease cylinder for easy adjustment and track removal, delivering longer life and minimizing downtime.

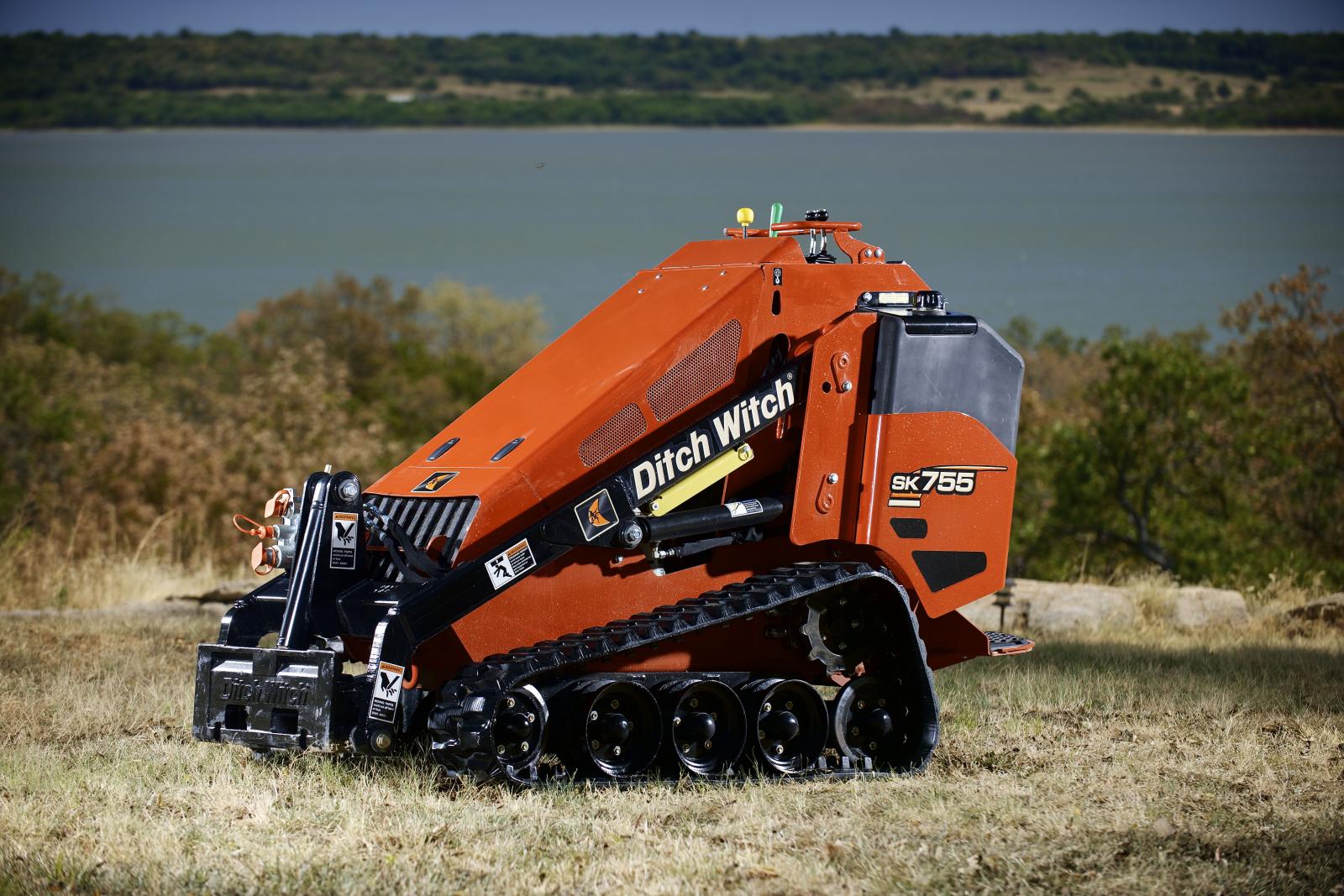

Innovative high-drive track system features bolt-on sprockets and wide track rollers for greater stability, longer track life and easy maintenance.
-
Dimensions
Dimensions U.S Metric Operating height, max. std. bucket 103 in 2.62 m Overall length of machine, std. bucket 105 in 2.67 m Overall length of loader, no attachment 86 in 2.19 m Machine weight (no attachment, fluids full) 2,890 lb 1314 kg Hinge pin height, max 81 in 2.06 m Wheelbase/track length 43 in 1.09 m Track width Max 42 in 1.06 m Min 36 in 0.91 m Ground clearance Center 8.9 in 226 mm Side 3.7 in 94 mm Tipping capacity 2,285 lb 1039 kg Rated operating capacity 35% of tipping capacity 800 lb 363 kg Angle of departure 27° -
Power
Power Engine Kubota® D1105-T Fuel Diesel Number of cylinders 3 Displacement 68.5 in3 1.12 L Bore 3.07 in 78 mm Stroke 3.09 in 78.4 mm Rated speed 3,000 rpm Gross power rating 32.8 hp 24.5 kW Emissions compliance EPA Tier 4i EU Stage IIIA -
Superior Support
SK755Superior Support
Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.
