  • Power Train
    Power Train Parking brake Mechanical, hand operated Service Ground drive speed/direction control brakes machine hydraulically when moved to neutral position
  • Dimensions
    Dimensions U.S Metric Mobile length 70 in 1.78 m Wheelbase 34.2 in 869 mm Tractor back to rear axle 26.8 in 681 mm Rear axle to attachment mounting 19.2 in 488 mm Attachment mounting to front axle 15 in 381 mm Mobile height 53.5 in 1.36 m Ground clearance 5.3 in 135 mm Platform height 10.7 in 272 mm Width 36 in 914 mm Angle of departure 25° Mass 1,290 lb 585 kg Vehicle clearance circle (SAE) wall to wall Right turn, 18 x 9.5-8 tires 11.3 ft 3.44 m Left turn, 18 x 9.5-8 tires 10.5 ft 3.2 m
  • Battery
    Battery SAE reserve capacity rating 32 min SAE cold crank rating @ 0°F (-18°C) 200 amps Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.
  • Operator's Station
    Zahn Tool Carrier
    Operator's Station

    Standard cruise control, which locks in operating speeds, reduces operator fatigue and increases productivity.

    Soft-touch, color-coded, ergonomic controls are easy to grip, easy to learn and provide smooth, easy operation.

    Convenient cargo tray is large enough to store a water bottle, work gloves, cell phone, or assorted tools.

  • Undercarriage
    Zahn Tool Carrier
    Undercarriage

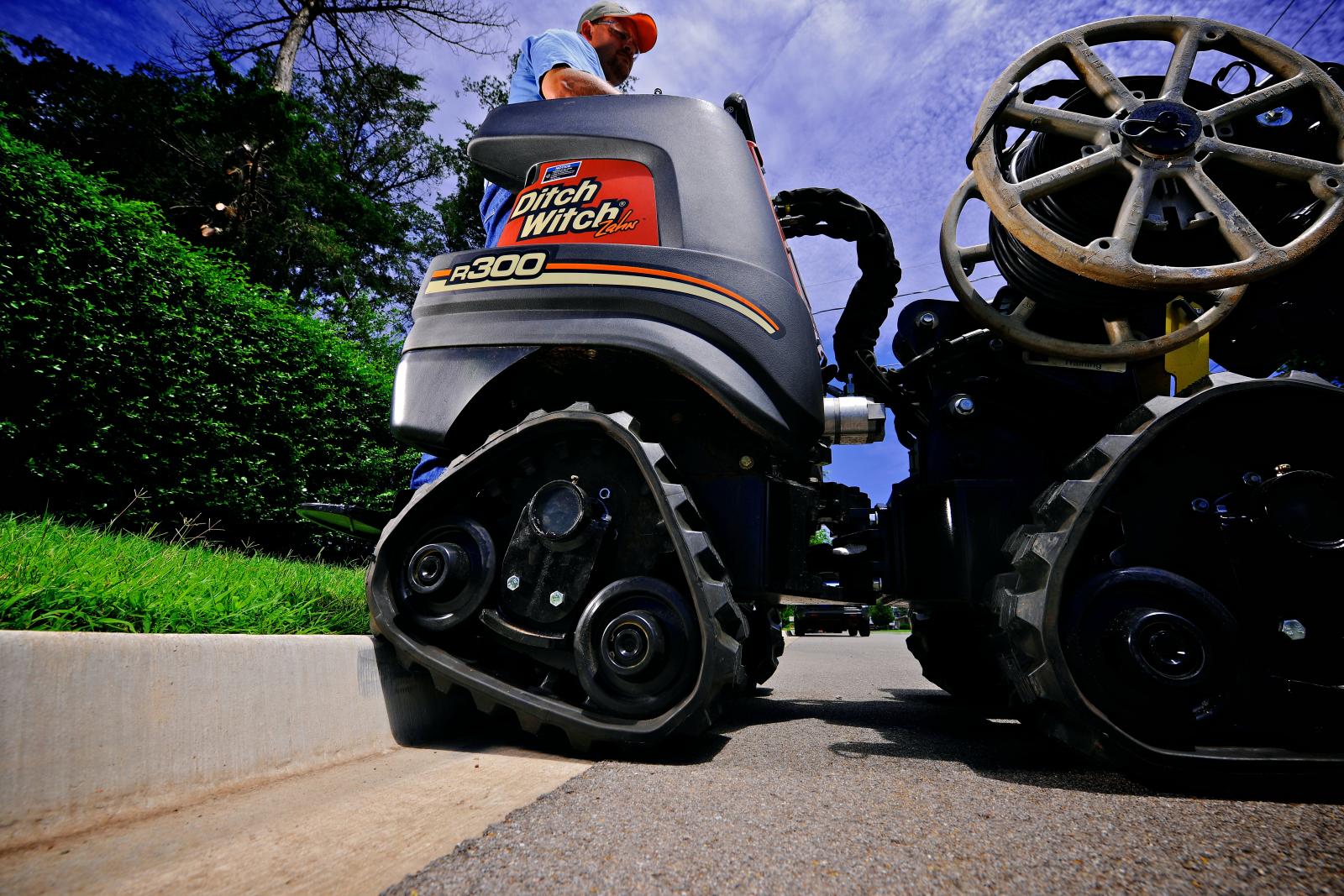

    Power unit's exclusive traction-assist feature provides extra drawbar on demand, enabling the operator to push more, pull more and traverse soft ground with minimal tire slippage.

  • Superior Support
    Zahn Tool Carrier
    Superior Support

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.

  • Productivity
    Zahn Tool Carrier
    Productivity

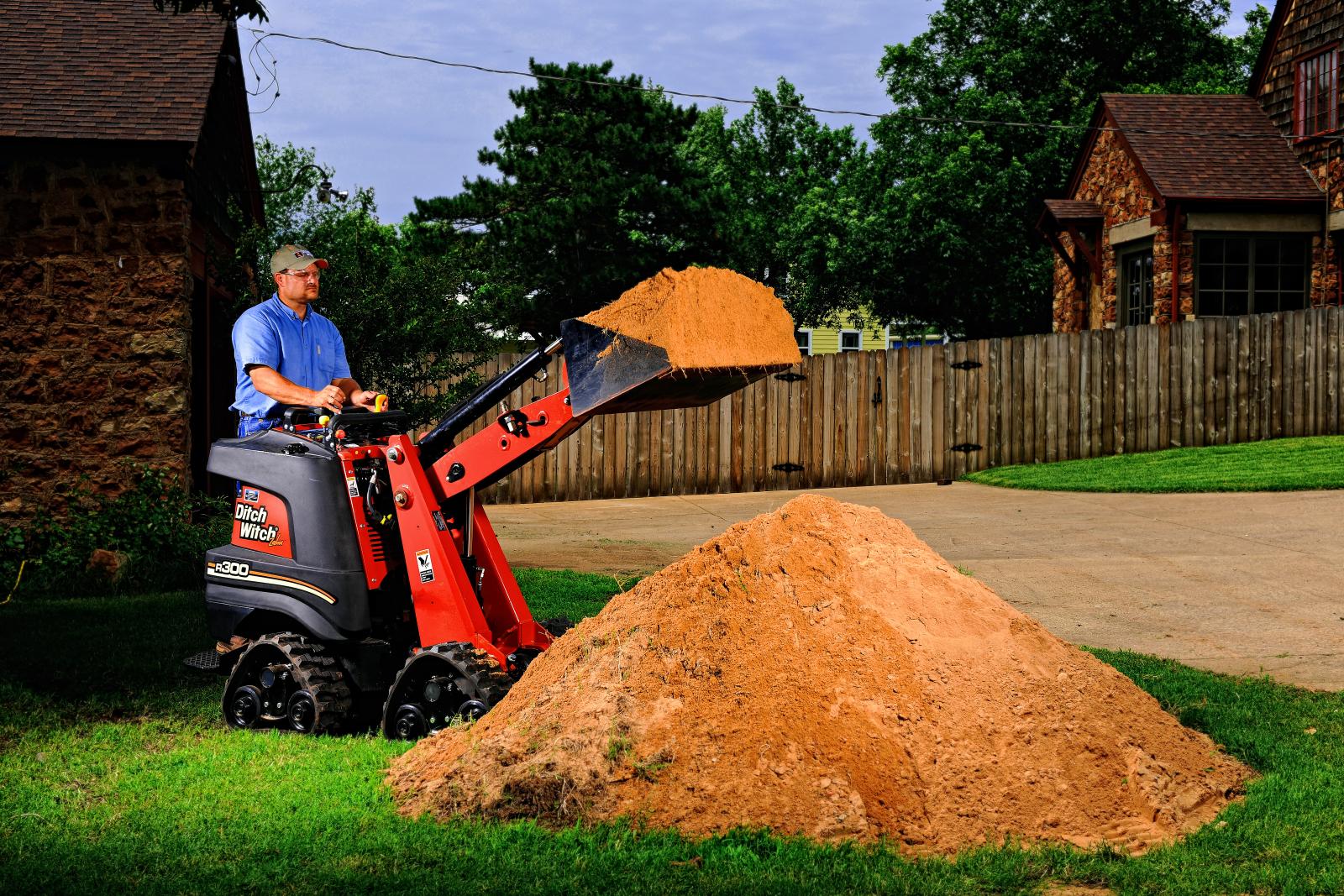

    The high-lift-arm tool carrier's 73-inch (1.85-m) hinge pin height provides the flexibility to perform an extensive range of tasks.

    4-bar linkage on bucket curl increases the high-lift-arm's rollback and dump angles so it can move materials more efficiently.

    The high-lift-arm's optional hydraulic self-leveling kit—an exclusive feature in this class—ensures that the attachment is level, so work can be more accurate and efficient.

    Kickstand provides quick and easy attachment to and removal from the power unit, increasing productivity.

    Standard mini skid steer-type attachment plate (optional with low-lift model) provides maximum versatility by enabling the tool carrier to accept more than 40 quick-change attachments.

  • Power
    Zahn Tool Carrier
    Power

    11-gallon (41.6 L) fuel tank enables the operator to work all day without having to refuel; the tank's molded-in sight glass allows the operator to keep an eye on fuel consumption.

  • Hydraulic System
    Hydraulic System Auxiliary: gear pump Flow rate 12 gpm 46 l/min Pressure 3,000 psi 207 bar Ground drive: hydrostat Flow rate 19.3 gpm 73 l/min Pressure 3,500 psi 241 bar
  • Fluid Capacities
    Fluid Capacities Fuel tank 9 gal 34.06 L Engine oil, w/filter 2 qt 1.9 L Hydraulic reservoir 7.7 gal 29.1 L Total hydraulic system volume 8.5 gal 32.2 L
  • Operation
    Operation Ground drive speed, forward/reverse Low 3.5 mph 5.6 km/h High 5 mph 8 km/h
  • Power
    Power Engine Kohler® CH750S Fuel Gasoline Cooling medium Air Number of cylinders 2 Displacement 45.6 in3 747 cm3 Bore 3.3 in 83 mm Stroke 2.7 in 69 mm Manufacturer's power rating 30 hp 22.4 kW Rated speed 3,600 rpm
  • Tires/Pressure
    Tires/Pressure 18 x 9.5-8, 2 ply, bar lug 12 psi 82.7 kPa The assembly mass 22 lb 1.9 L Urethane filled 18 x 9.5-8, 2 ply, bar lug N/A 29.1 L The assembly mass 36 lb 32.2 L Urethane filled 20 x 10-8, ply, bar lug N/A The assembly mass 49 lb 22.23 kg 18 x 8.5-8, 2 ply, turt 22 psi 151.7 kPa The assembly mass 20 in 9.07 kg
