  • Operator Comfort
    FX30
    Operator Comfort

    At 73 dBA, the FX30 vacuum excavator is the quietest on the market, for minimal disturbance in noise-sensitive areas and greater operator comfort.

  • Rugged Design
    FX30
    Rugged Design

    Compact footprint capable of large-volume production.

    Reusable, single-element vacuum filter and a blower relief valve air filter provide the industry's best filtration.

  • Dimensions



    Dimensions

    U.S.
    Metric





    500 Gal Spoils/80 Gal Water on T9SE6 or T9SH6





    Length
    200 in
    5080 mm



    Width
    96 in
    2184 mm



    Height
    86 in
    2337 mm



    Weight, empty
    5,465 lb
    2479 kg



    Trailer GVWR
    10,000 lb
    4536 kg









    800 Gal Spoils/200 Gal Water on T18S





    Length
    233 in
    4880 mm



    Width
    102 in
    2590 mm



    Height
    92 in
    2337 kg



    Weight, empty
    8,255 lb
    3744 kg



    Trailer GVWR
    18,000 lb
    8172 kg

  • Battery



    Battery

    U.S.
    Metric





    SAE reserve capacity rating
    110 min




    SAE cold crank rating @ 0°F (-18°C)
    800 amps




    Electrical system
    12V


  • Power
    FX30
    Power

    With the aid of its 24.8-hp (18.5-kW) Kubota® diesel engine, the FX30 vacuum excavator provides more than enough suction power and water pressure.

    System may be ordered from the factory either trailer-mounted or stand-alone, so you can mount it on your own trailer or flatbed truck.

  • Power



    Power

    U.S.
    Metric





    Engine
    Kubota® D1105-E3B




    Fuel
    Diesel




    Cooling medium
    Liquid




    Injection
    Indirect




    Aspiration
    Natural




    Number of cylinders
    3




    Displacement
    68.6 in3
    1.12 L



    Bore
    3.07 in
    78 mm



    Stroke
    3.09 in
    78.5 mm



    Manufacturer's gross power rating (SAE J1995)
    24.8 hp
    18.5 kW



    Rated speed
    3,000 rpm




    Emissions compliance
    EPA Tier 4
    EU Stage IIIA



    Fuel tank capacity
    15 gal
    57 L

  • Versatility
    FX30
    Versatility

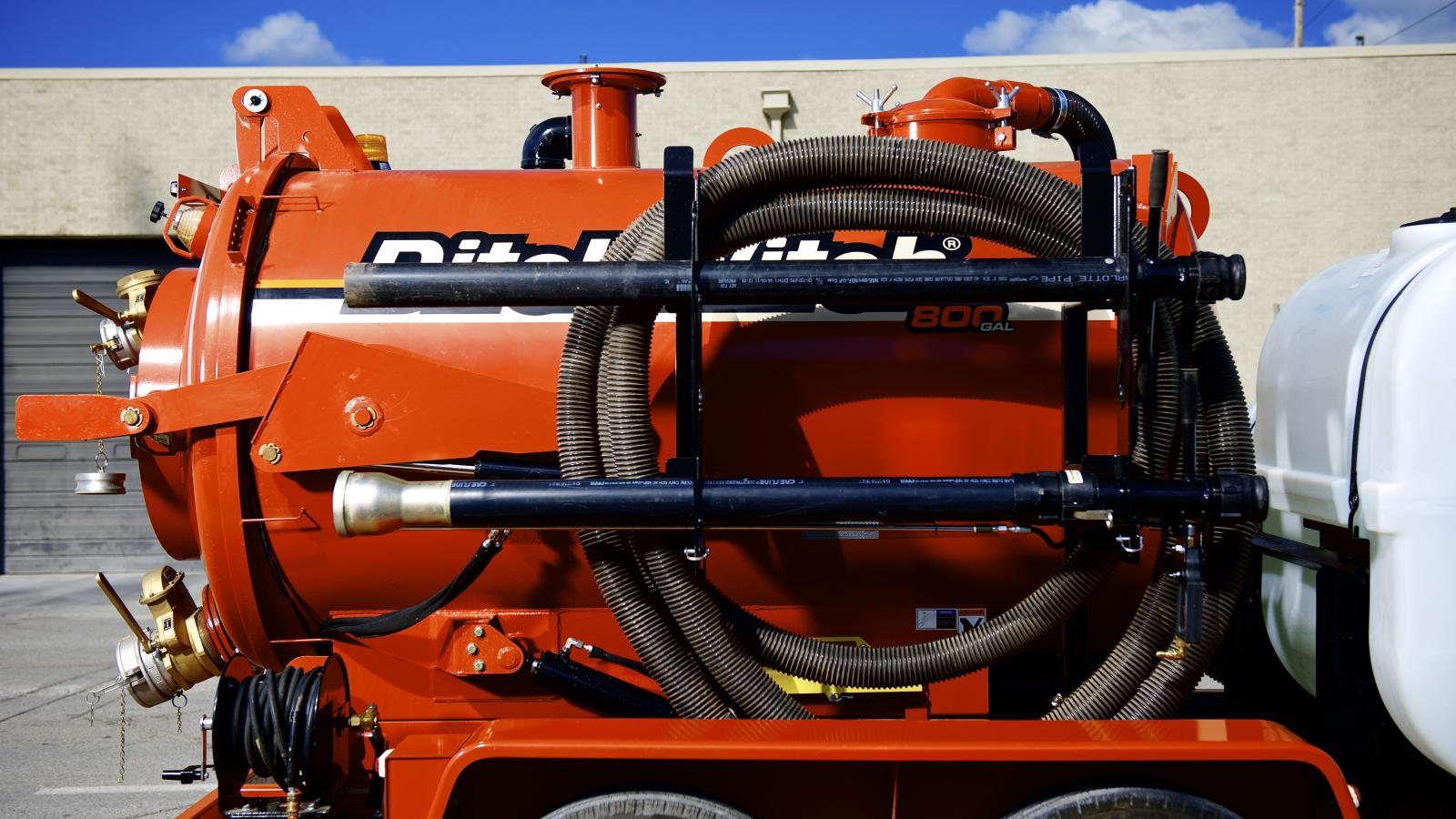

    The FX30's numerous options include a choice of 500- or 800-gallon (1893- or 3028-L) vacuum tanks and 80-, 200- or 300-gallon (303-, 757- or 1136-L) water tanks to meet the requirements of virtually any size cleanup job.

    The FX30 will be one of the most versatile machines in your fleet; applications include exposing buried utility lines, cleaning out storm drains, directional drilling site cleanup, water leak repair, valve box cleanout, utility vault cleanout, commercial and residential debris cleanup and landscaping, and posthole digging.

  • Superior Support
    FX30
    Superior Support

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.

  • Water System



    Water System

    U.S.
    Metric





    Water tank capacity
    80/200/300 gal
    303/757/1136 L



    Water pump flow
    4.2 gpm
    16 l/min



    Water pump pressure, max
    3,000 psi
    207 bar



    Clutch type
    Electric pump clutch w/auto de-clutch feature




    Hose reel (locking)
    50 ft
    15.3 m



    Antifreeze system
    50/50 water/antifreeze mix


  • Vacuum System



    Vacuum System

    U.S.
    Metric





    Air flow
    500 cfm
    14.2 m3/min



    Drive type
    Belt




    Vacuum, max
    15 in Hg
    381 mm Hg



    Hose
    3 or 4 in
    76 or 101 mm



    Outlet valve size
    6 in
    152 mm



    Tank inlet valve size
    4 in
    102 mm



    Tank dump angle, max
    45°




    Filter type
    Washable polyester




    Filter area
    100 ft2
    9.3 m2



    Filter rating
    0.5 micron per ASHA RP531




    Water trap capacity
    8 gal
    30.3 L



    Vaccum tank capacity
    800/500 gal
    1893/3032 L



    Tank door diameter
    52 in
    1.3 m

  • Ease of use
    FX30
    Ease of use

    Full-opening rear door with single-point latch provides easy spoils removal.

    Water pressure can be adjusted from a curbside operator's station that allows one-person control of all unit functions.

    Autoclutching feature disengages the water pump when water is not in use, allowing full system power to the blower.

    Fully enclosed, insulated and lockable power pack protects major components from weather and vandalism while leading the industry in noise reduction.

  • Hydraulic System



    Hydraulic System

    U.S.
    Metric





    Pressure
    2,500 psi
    172 bar



    Drive type
    12V DC




    Tank lift cylinder size (2)
    3 in
    76 mm



    Tilt angle, max
    45°


  • Noise Level



    Noise Level

    U.S.
    Metric





    Sound power
    105 dBA




    Sound pressure per ISO
    73 dBA





    Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.
