  • Power
    FXT50
    Power

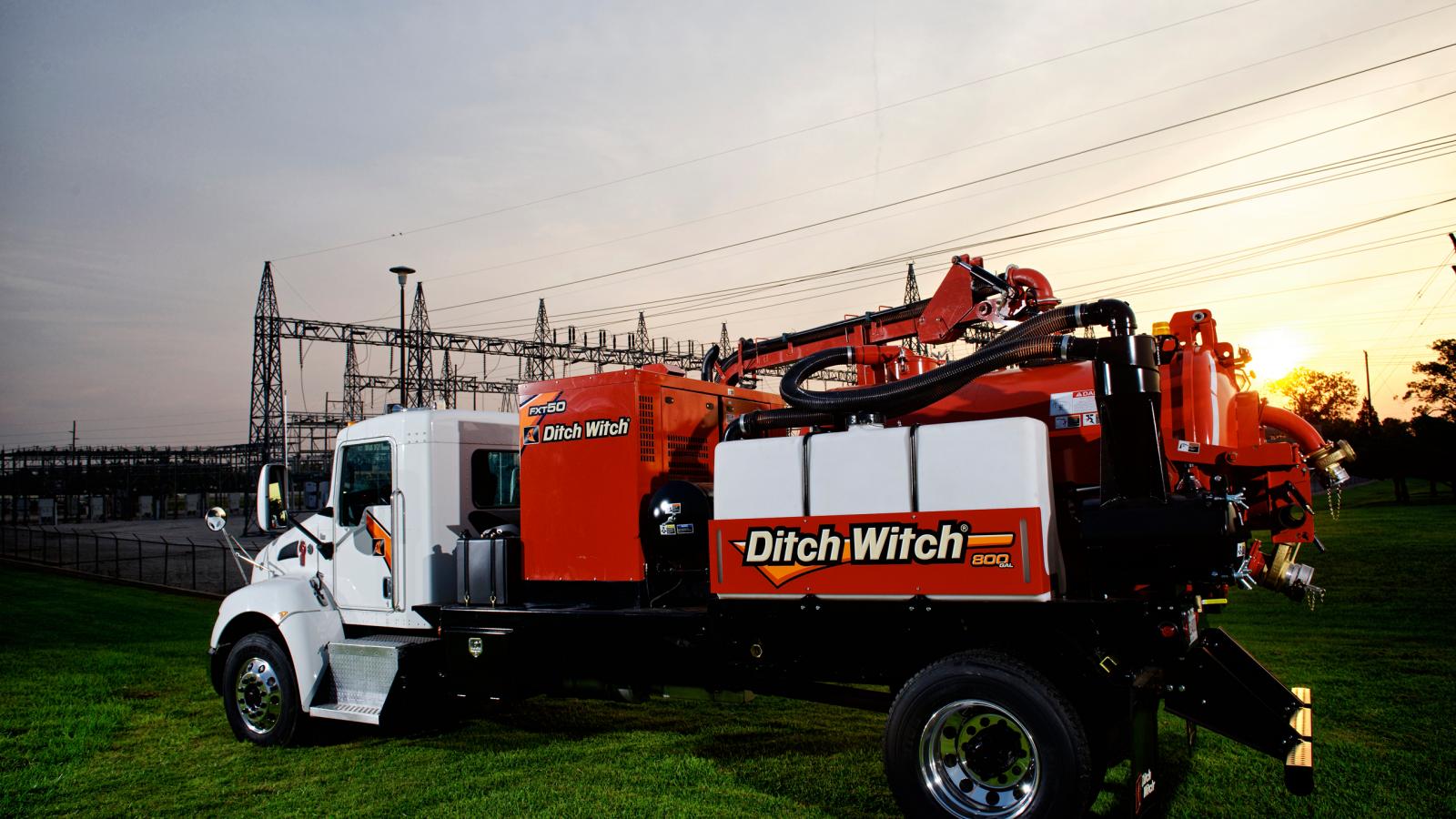

    Equipped with a 49-hp (36.5-kW) Deutz® diesel engine, the FXT50 has an extremely efficient 1,020-cfm (28.8-m3/min) blower and a powerful water system with a water pressure capacity of 3,000 psi (207 bar) and 5-gpm (19-l/min) flow.

  • Dimensions



    Dimensions

    U.S.
    Metric





    800 Gal Spoils/400 Gal Water





    Length
    214.3 in
    5443.2 mm



    Width
    96 in
    2438.4 mm



    Height
    93 in
    2362.2 mm



    Weight, empty (Tier 4i)
    6,700 lb
    3039.1 kg



    Weight, empty (Tier 4)
    7,260 lb
    3293 kg



    Truck GVWR, min
    33,000 lb
    14968.5 kg



    500 Gal Spoils/200 Gal Water





    Length
    214.3 in
    5443.2 mm



    Width
    96 in
    2438.4 mm



    Height
    93 in
    2362.2 mm



    Weight, empty
    6,175 lb
    2800.9 kg



    Weight, empty (Tier 4)
    6,155 lb
    2791.9 kg



    Truck GVWR, min
    25,950 lb
    117707.7 kg

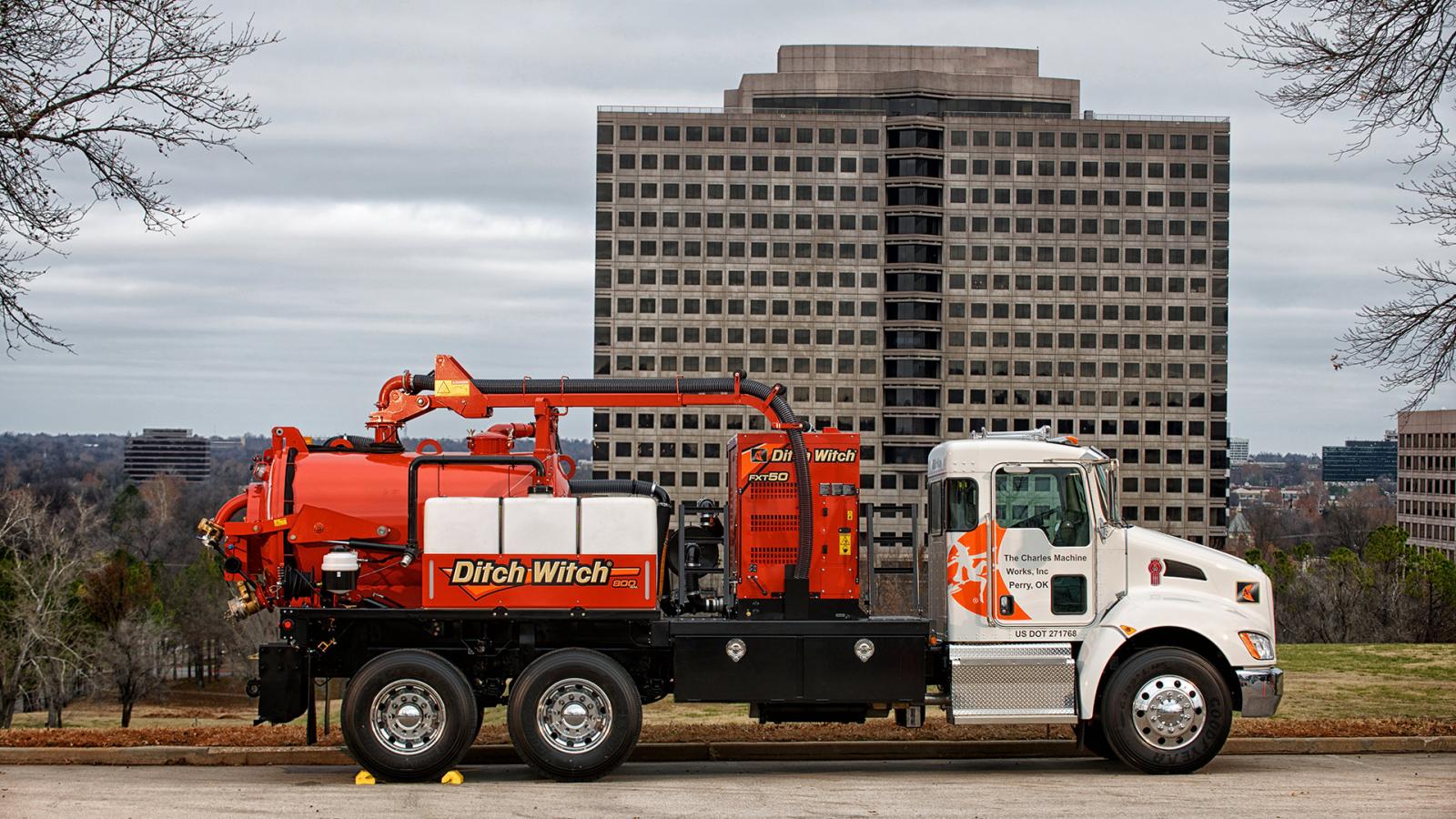

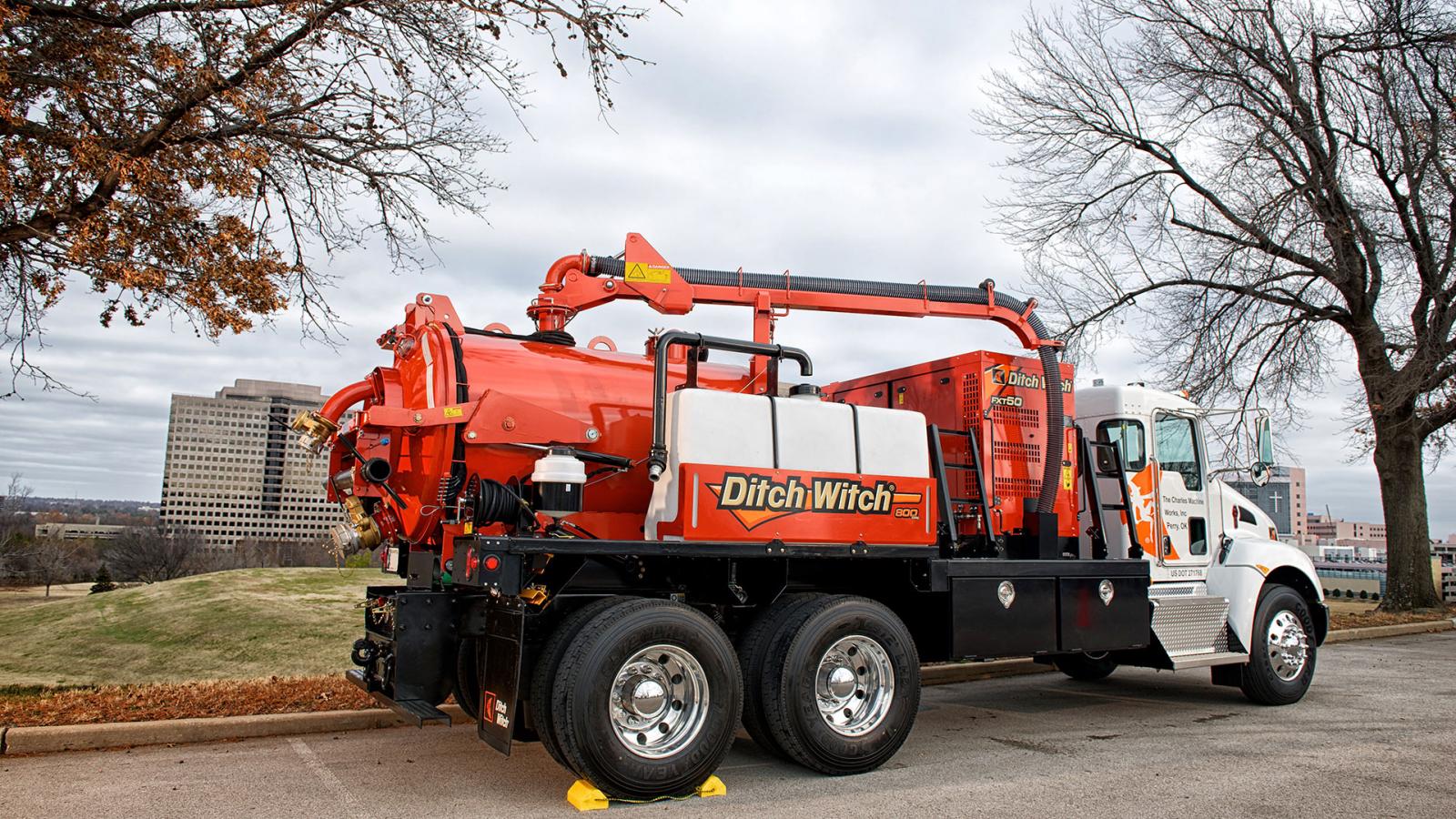

    800 Gal Spoils/400 Gal Water (Tandem Axle)





    Length
    235.3 in
    5976.6 mm



    Width
    96 in
    2438.4 mm



    Height
    93 in
    2362.2 mm



    Weight, empty
    7,100 lb
    3220.5 kg



    Weight, empty (Tier 4)
    7,760 lb
    3519.9 kg



    Truck GVWR, min
    52,000 lb
    23586.8 kg

  • Hydraulic System (Tier 4i)



    Hydraulic System (Tier 4i)

    U.S.
    Metric





    DC power unit
    12V




    Reservoir size
    2 gal
    7.6 L



    Pressure
    2,500 psi
    172 bar

  • Vacuum System



    Vacuum System

    U.S.
    Metric





    Air flow
    1,020 cfm
    28.8 m3/min



    Drive type
    Belt




    Vacuum, max
    16 in Hg
    406.4 mm Hg



    Vacuum tank capacity
    500/800 gal
    1892.7/3028.3 L



    Tank outlet valve size
    6 in
    152 mm



    Tank inlet valve size
    4 in
    102 mm



    Tank dump angle, max
    45°




    Filter type
    Washable polyester




    Filter area
    100 ft2
    9.3 m2



    Filter rating
    0.5 micron per ASHA RP531




    Hose
    4 in
    101.6 mm

  • Superior Support
    FXT50
    Superior Support

    Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service to expert advice, your Ditch Witch dealer has it all for you.

  • Versatility
    FXT50
    Versatility

    Mounts to single-axle truck of your choice, new or used, so you can control the level of initial investment and customize with toolboxes and support equipment; complies with all truck manufacturers’ requirements.

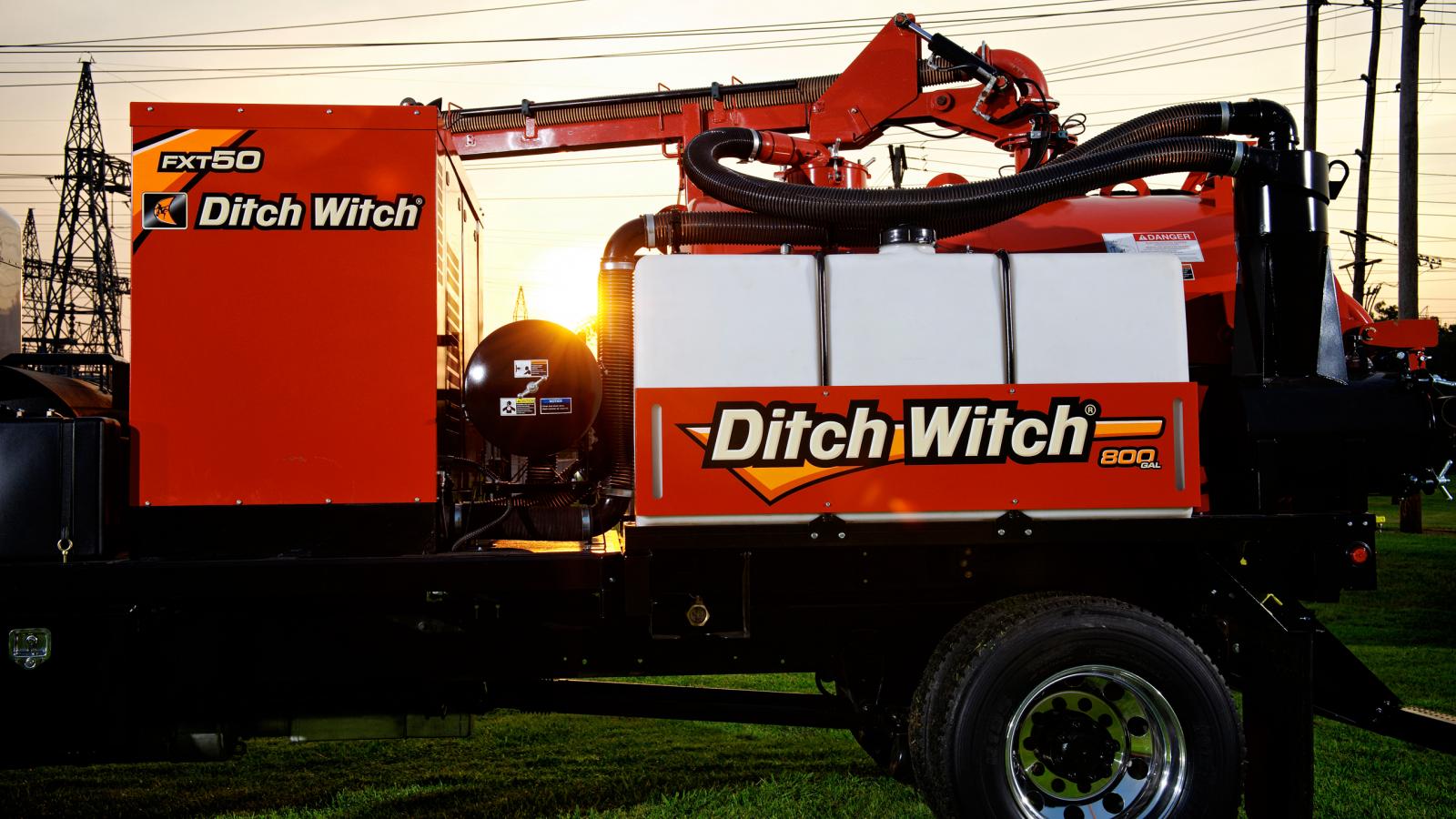

    Choice of 500-gallon (1893-L) spoils tank with 200-gallon (757-L) water tank or 800-gallon (3028-L) spoils tank with 400-gallon (1512-L) water tank to meet the requirements of virtually any size cleanup job.

  • Power (Tier 4)



    Power (Tier 4)

    U.S.
    Metric





    Engine
    Deutz® D2.9L4




    Fuel
    Diesel




    Cooling medium
    Liquid




    Aspiration
    Natural




    Number of cylinders
    4




    Displacement
    178 in3
    2.9 L



    Bore
    3.62 in
    91.9 mm



    Stroke
    4.33 in
    110 mm



    Manufacturer's gross power rating (SAE J1995)
    49 hp
    36 kW



    Rated speed
    2,600 rpm




    Emissions compliance
    EPA Tier 4
    EU Stage IIIA



    Fuel tank capacity
    25 gal
    94.6 L

  • Operator Comfort
    FXT50
    Operator Comfort

    At 82 dBA, the FXT50 is the quietest in its horsepower class; fully enclosed, insulated and lockable power pack protects major components from weather and vandalism while leading the industry in noise reduction.

  • Water System



    Water System

    U.S.
    Metric





    Water tank capacity
    200/400 gal
    757.1/1514.2L



    Water pump flow
    5.1 gpm
    19.3 l/min



    Water pump pressure, max
    3,000 psi
    207 bar



    Clutch type
    Electric pump clutch w/auto declutch feature




    Antifreeze system
    50/50 water/antifreeze mix




    Hose length
    50 ft
    15.3 m

  • Productivity
    FXT50
    Productivity

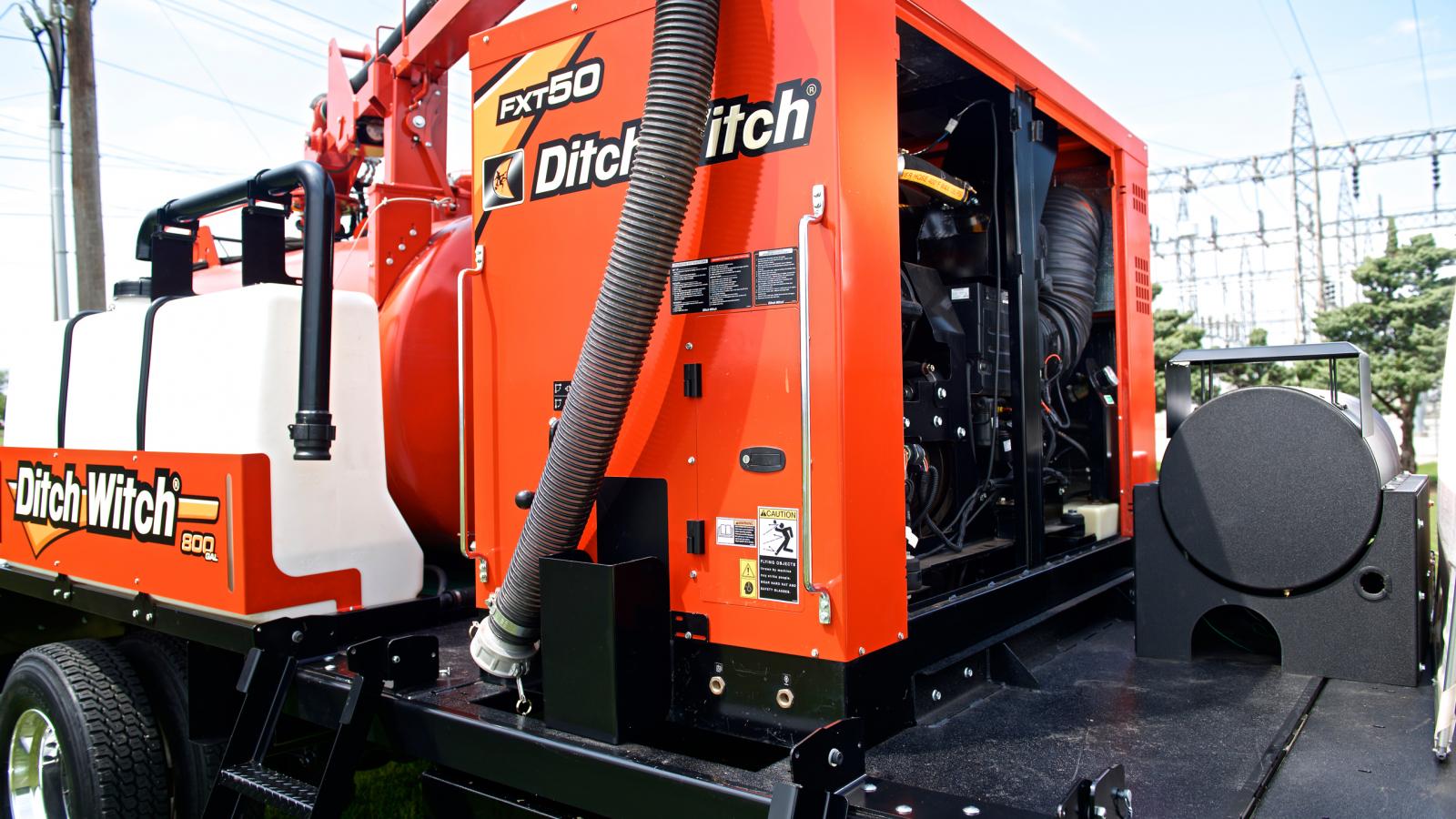

    Easy access to power pack for convenient servicing.

    Optional heater keeps water system from freezing in inclement weather and increases production in tight soils.

  • Rugged design
    FXT50
    Rugged design

    Designed specifically for mounting on truck frame rails, allowing system components to flex independently of truck, for maximum structural integrity.

    Designed for minimal overall package height, resulting in a lower center of gravity and better handling during transport.

    Saddle-style tanks provide optimal weight distribution to keep payload over rear axle.

    Reusable, 0.5-micron vacuum filter and a blower relief valve air filter provide the industry's best filtration; optional cyclonic filter cleans the air before it reaches the filter, minimizing maintenance.

  • Power (Tier 4i)



    Power (Tier 4i)

    U.S.
    Metric





    Engine
    Deutz D2011L03I




    Fuel
    Diesel




    Cooling medium
    Oil




    Aspiration
    Natural




    Number of cylinders
    3




    Displacement
    142 in3
    2.33 L



    Bore
    3.7 in
    94 mm



    Stroke
    4.41 in
    112 mm



    Manufacturer's gross power rating (SAE J1995)
    48.7 hp
    36.6 kW



    Rated Speed
    2,800 rpm




    Emissions compliance
    EPA Tier 4i
    EU Stage IIIA



    Fuel tank capacity
    19 gal
    71.9 L

  • Battery



    Battery

    U.S
    Metric





    SAE reserve capacity rating
    195 min




    SAE cold crank @ 0°F (-18°C)
    950 amps




    Electrical system
    12V


  • Noise Level



    Noise Level

    U.S.
    Metric





    Sound power
    110 dBA




    Sound pressure
    82 dBA


  • Ease of use
    FXT50
    Ease of use

    Easily accessible controls and service points; curbside controls can be configured for left- or right-hand traffic, for greater safety and convenience.

    Remote-fill water tank allows for easy filling and prevents siphoning back into the water supply.

    Integrated tool rack on door and underbody hose storage help simplify operation.

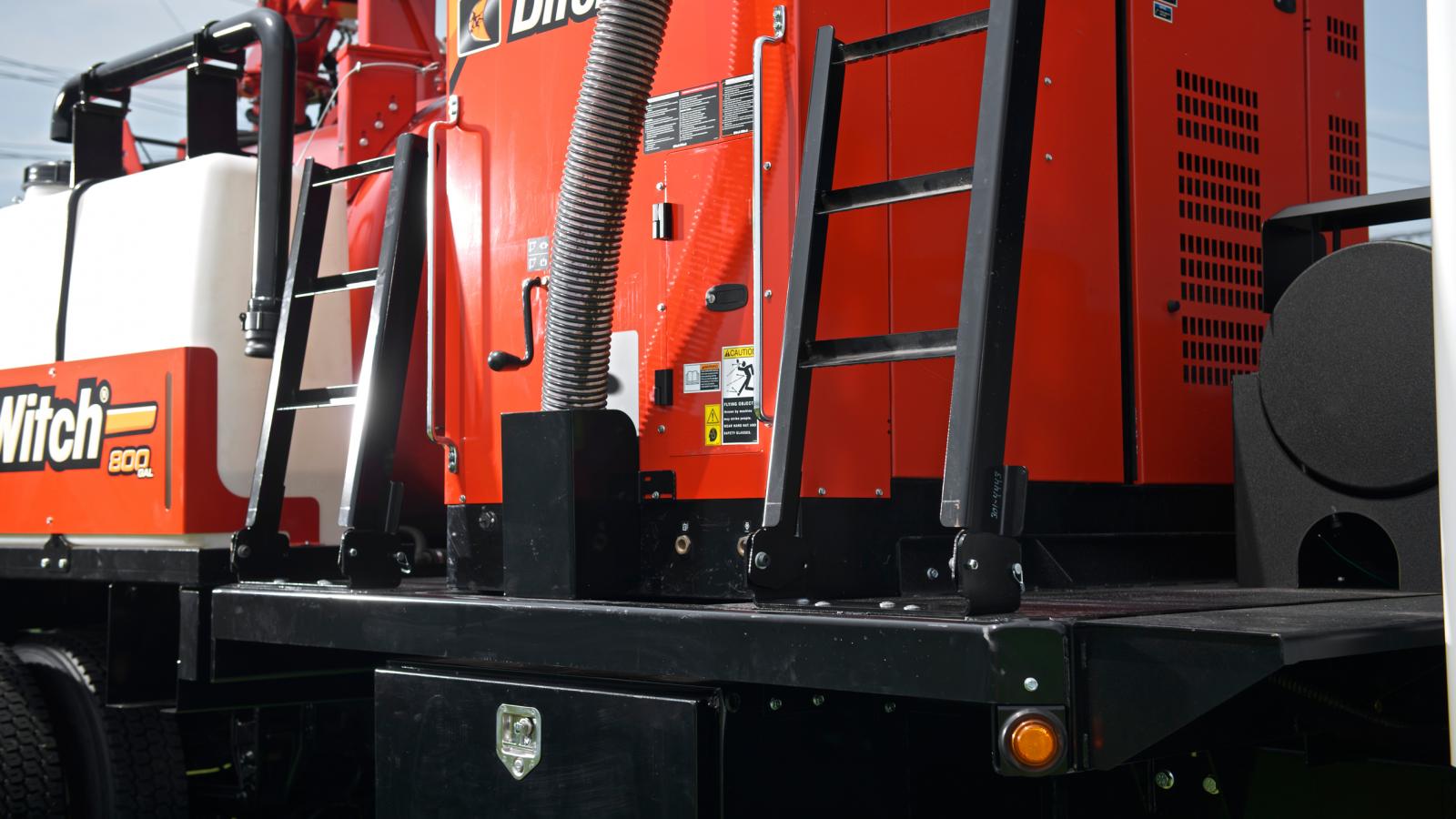

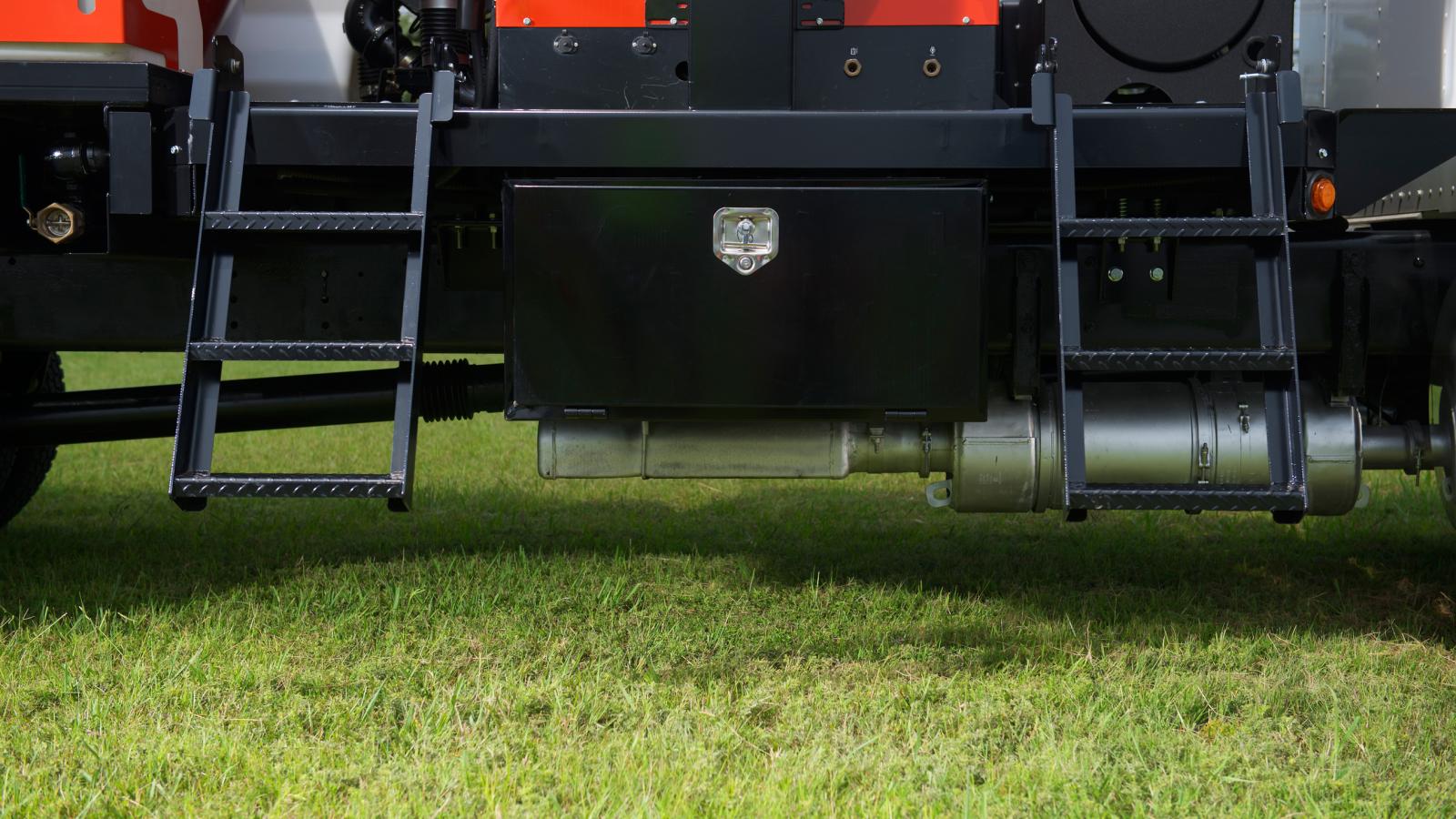

    Ladders provide easy access to truck bed and can be stowed when not in use.

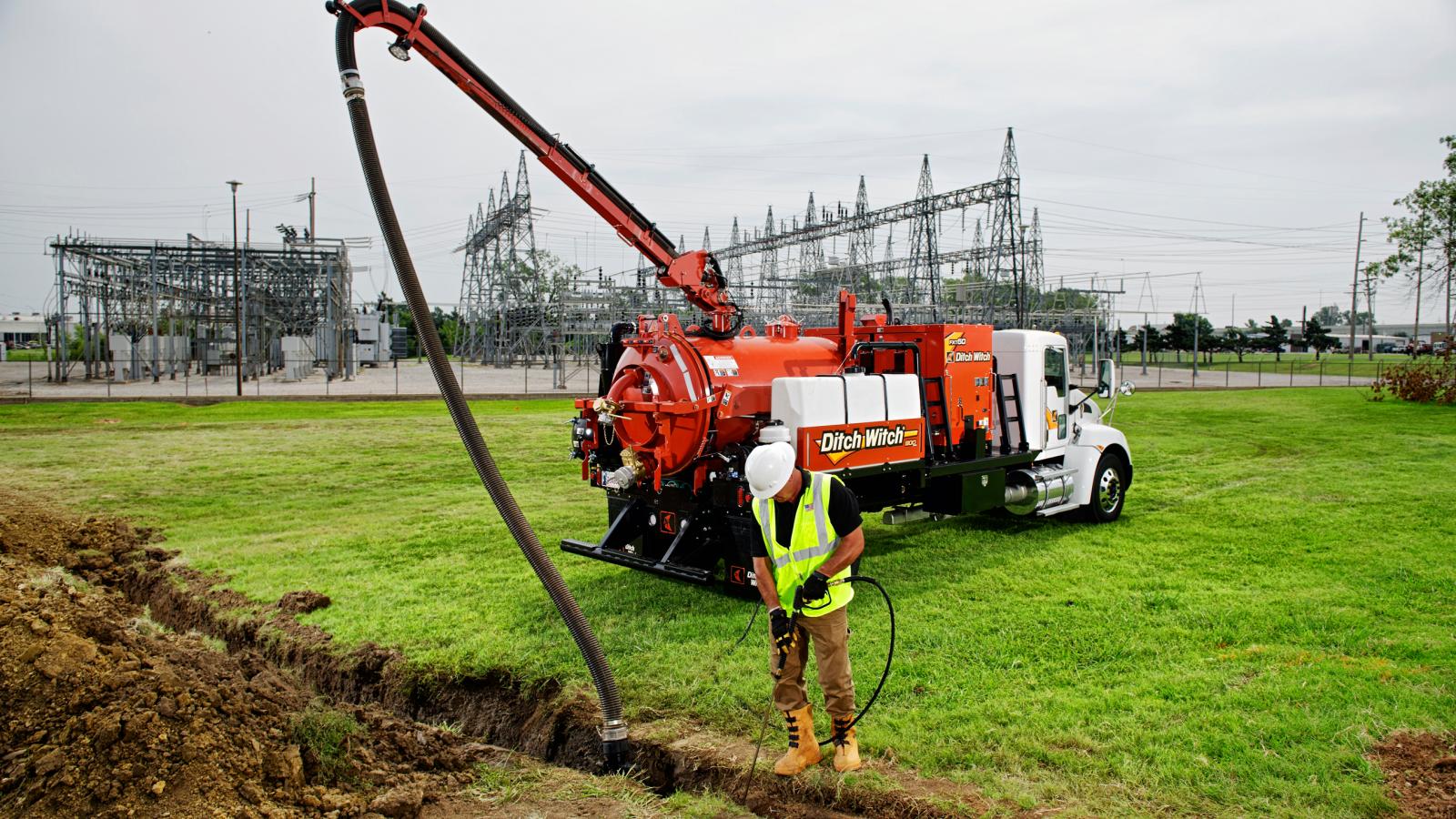

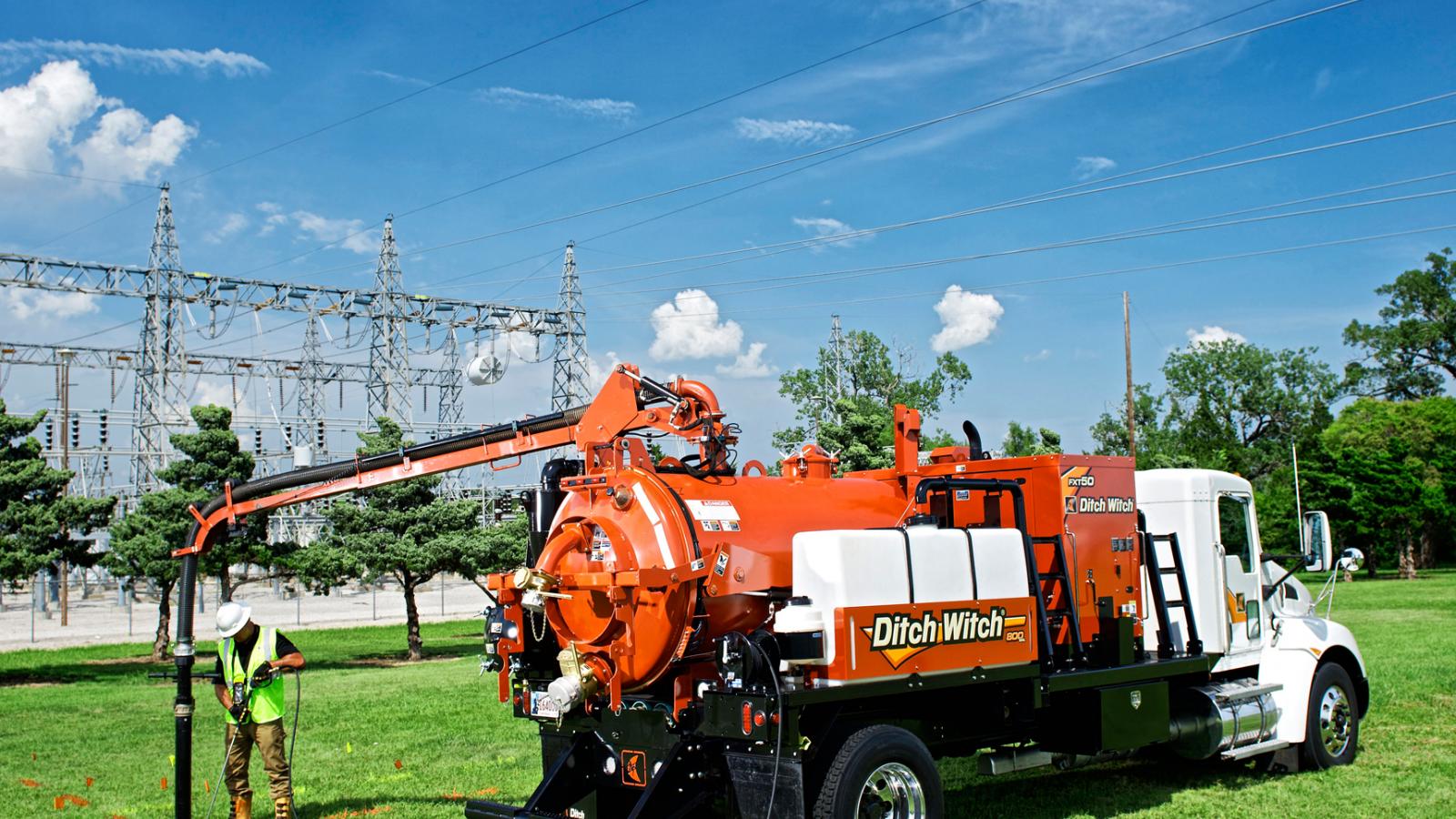

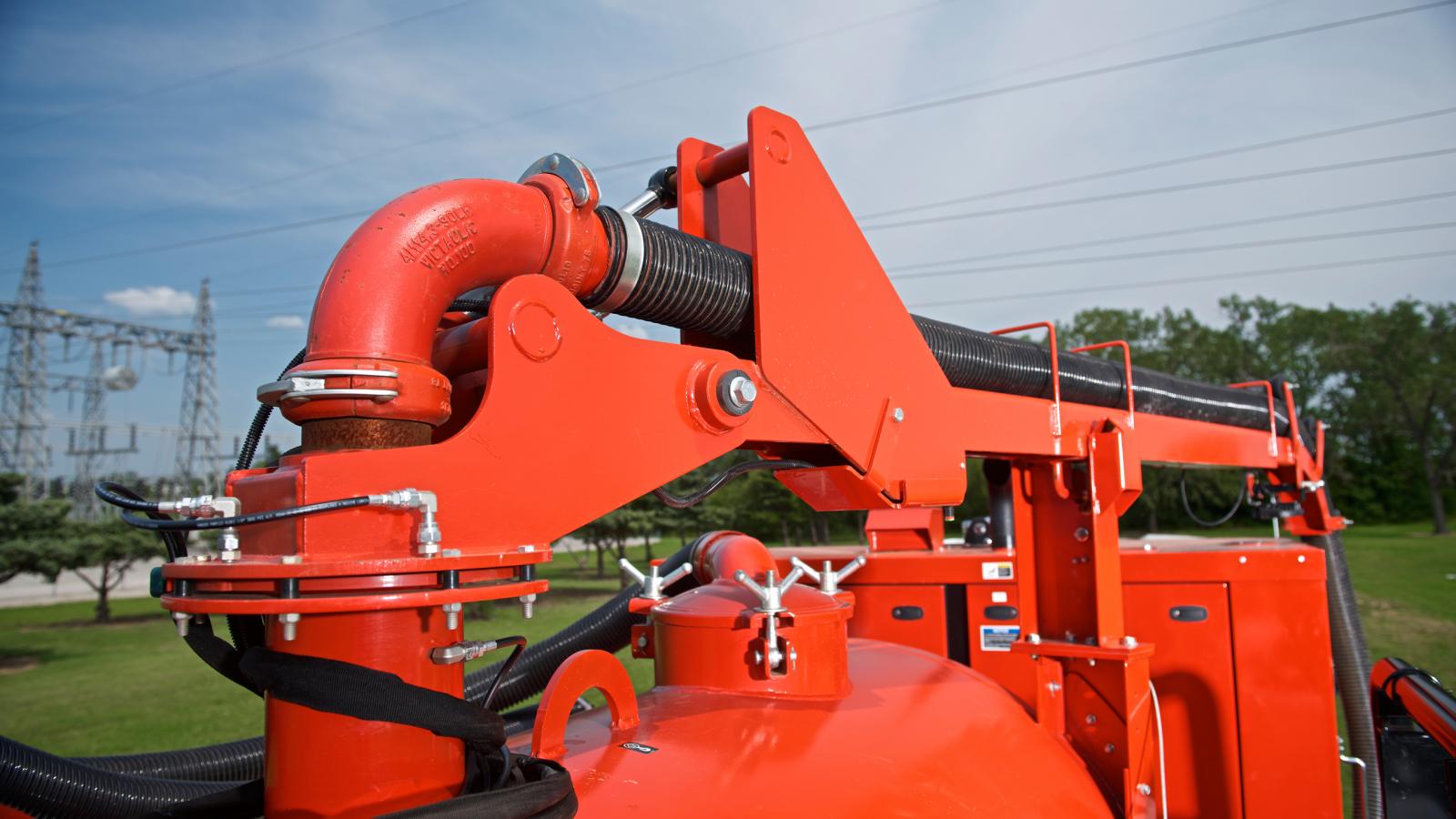

    Optional hydraulic boom extends to 14 ft (4.3 m); saves labor, time and reduces operator fatigue.

    Optional reverse-flow feature enables quick and easy offloading of spoils.

    Standard hydraulic door opens fully horizontal to maximize the efficiency of spoils removal; door also features hydraulic locks.

    Autoclutching feature disengages the water pump when water is not in use, allowing full system power for suction.

  • Hydraulic System (Tier 4)



    Hydraulic System (Tier 4)

    U.S.
    Metric





    Flow rate (500 single axle)
    3.5 gpm
    13.2 l/min



    Flow rate (800 single axle)
    7.5 gpm
    28.4 l/min



    Flow rate (800 tandem axle)
    3.5 gpm
    13.2 l/min



    Reservoir size
    6 gal
    22.7 L



    Pressure
    2,500 psi
    172 bar
