  • Added Versatility
    HX30
    Added Versatility

    The HX30 is equipped with a 500- or 800-gal (1893- or 3028-L) debris tank for any size cleanup job.

    The HX30 is available with two size options.

    • 800-gallon configurations include:
      • A standard version equipped with a 200-gal freshwater tank and a 20K GVWR trailer.
    • 500-gallon configurations include:
      • A heavy version equipped with a 200-gal freshwater tank and a 14K GVWR trailer.

    All trailer configurations are NATM compliant and are offered with an optional toolbox.

    An optional jib boom is available on both HX30 model versions, and has exclusive dual articulation, providing the widest range of motion in the industry. A hose restraint helps control the unit’s hose from jumping while working.

    An optional power boom is available on the heavy version of the 800-gal HX30 model and features an advanced design that reduces manual labor for the operator. The hydraulically-powered boom offers 330-degree rotation and includes a self-locking gear, acting as a boom brake, to restrain motion of the boom and maintain its desired position.

    The machine can be configured to accommodate operator controls on either the left or right side to meet each contractor’s individual needs.

  • Vacuum System



    Vacuum System

    US
    Metric





    Air flow
    512 cfm
    14.5 m³/min



    Vacuum, Max
    15 in Hg
    381 mm Hg



    Vacuum tank capacity
    500/800 gal
    1893/3028 L



    Tank outlet valve size
    6 in
    152 mm



    Filter type
    Washable polyester




    Filter area
    73 ft²
    6.8m²



    Suction hose
    3in
    102 mm

  • Battery



    Battery








    SAE reserve capacity rating
    110 min




    SAE cold crank rating @ 0°F (-18°C)
    800 amps




    Electrical system
    12V


  • Dimensions (800 Gal Spoils / 400 Gal Water)



    Dimensions (800 Gal Spoils / 400 Gal Water)








    Length
    269.4 in
    6.84 m



    Width
    96 in
    2.43 m



    Height
    88.7 in
    2.25 m



    Weight, empty
    8,538 lb
    3873 kg



    Trailer GVWR
    24,000 lb
    10,886 kg

  • Hydraulic System



    Hydraulic System

    US
    Metric





    Flow rate
    3.6 gpm
    14 l/min



    Pressure
    2,500 psi
    172 bar



    Drive type
    12V DC




    Tank lift cyclinder size (2)
    3 in
    76 mm



    Tilt angle, max
    45°


  • Dimensions (500 Gal Spoils / 200 Gal Water)



    Dimensions (500 Gal Spoils / 200 Gal Water)

    US
    Metric





    Length
    232.1 in
    5.9 m



    Width
    96 in
    2.44 m



    Height
    84.2 in
    2.14 m



    Weight, empty
    6,853 lb
    3108 kg



    Trailer GVWR
    14,000 lb
    6350 kg

  • Water System



    Water System

    US
    Metric





    Water tank capacity
    200/400 gal
    757/1514 L



    Water pump flow
    4.2 gpm
    15.9 l/min



    Water pump pressure, max
    3,000 psi
    207 bar



    Clutch type
    Electric pump clutch w/auto de-clutch feature




    Hose reel (locking)
    50 ft
    15.3 m



    Antifreeze system
    50/50 water/antifreeze mix


  • Low-Profile, Customer-Driven Design
    HX30
    Low-Profile, Customer-Driven Design

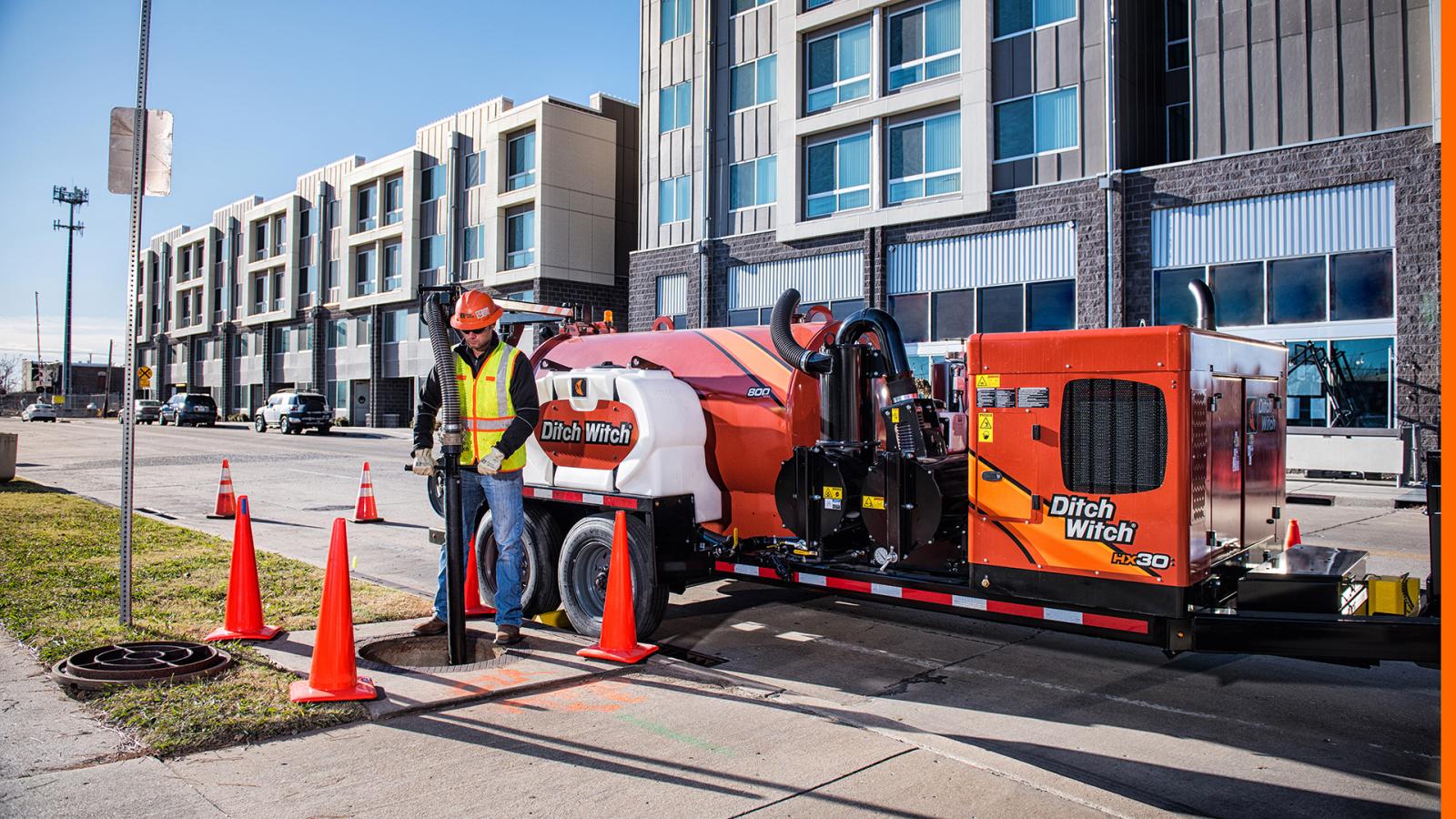

    The construction-grade HX30 features a durable, narrow design for easy navigation in urban or congested areas.

    Featuring a low-profile design, the machine’s full unit height is reduced. This eases maneuverability and allows the unit to fit in height-restrictive areas, without compromising ground clearance so operators can more easily avoid ground-level obstacles.

    An exclusive, hose-storage design allows operators to store the hose flat and straight inside the unit frame?a direct customer-driven enhancement. The vac door also features convenient storage for unit tools, including the vac tube and digging lance.

    Patent-pending, advanced door linkage automates lockout when fully opened, without requiring any additional effort from the operator.

    The HX30 now has hydraulic controls located at the rear of the units, leaving less opportunity for damage to the unit and enhancing operator visibility.

    An optional dual work light features two LED floodlights in the back of the vac unit for use in dark or night conditions.

  • Dimensions (800 Gal Spoils / 200 Gal Water)



    Dimensions (800 Gal Spoils / 200 Gal Water)

    US
    Metric





    Length
    269.4 in
    6.84 m



    Width
    96 in
    2.43 m



    Height
    85 in
    2.16 m



    Weight, empty
    8538
    3873



    Trailer GVWR
    20,000 lb
    4536 kg

  • Simplified Maintenance
    HX30
    Simplified Maintenance

    The HX models feature improved serviceability as all maintenance points are more accessible with a liftoff power pack door design.

    Standard on the HX30 is a cyclonic filtration system that minimizes filter cleaning frequency, while providing superior filtration, resulting in increased productivity.

    An optional spare tire with a carrier allows easy access to a spare when needed, reducing downtime.

  • Proven Productivity
    HX30
    Proven Productivity

    The HX30 has a compact footprint capable of meeting the needs of large-production jobs.

    Powered by a 24.8-hp (18.5-kW) Kubota diesel engine, the unit provides optimal suction power and water pressure for any mid-sized underground construction job or other non-hazardous cleanup tasks.

    The HX30 provides 66 percent more fuel capacity than its predecessor for improved productivity and fewer refueling stops during the workday.

    New, patent-pending make/break seal design optimizes air flow for increased efficiency, and simplified plumbing.

    A standard, cyclonic three-stage filtration system cleans the air before it reaches critical components. It is comprised of the debris tank, cyclonic filter and 0.5-micron washable vacuum filter - offering the industry’s best filtration for maximum protection of key components.

    Featuring outstanding suction and water pressure, the HX30 is equipped with an efficient 512-cfm (14.5-m3/min) blower, and a powerful water system with water-pressure capacity of 3,000 psi (207 bar) and 4.2-gpm (16-L/min) flow.

  • Power



    Power

    US
    Metric





    Engine
    Kubota® D1105




    Fuel
    Diesel




    Cooling medium
    Liquid




    Aspiration
    Natural




    Number of cylinders
    3




    Manufacturer's gross power rating
    24.8 hp
    18.5 kW



    Emissions compliance
    EPA Tier 4
    EU Stage IIIB



    Rated speed
    3,000 rpm




    Fuel tank capacity
    25 gal
    94.6 L

  • Noise Level



    Noise Level








    Sound power
    104 dBA




    Sound pressure
    77 dBA
